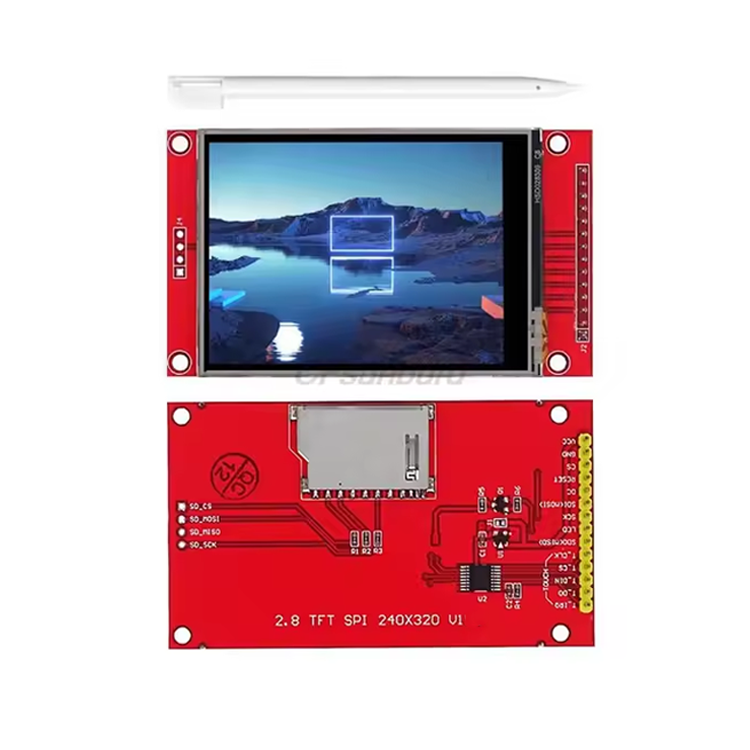

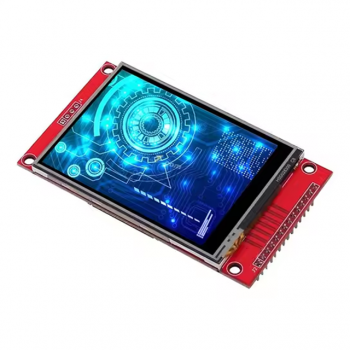

2.8 inch 320x240 SPI Serial TFT LCD Module Display Screen with Touch Panel
The 2.8-inch TFT LCD module features a 320x240 pixel resolution and supports 65K colors, making it ideal for vibrant displays. With an ILI9341 driver and a 4-wire SPI interface, it offers easy integration and minimal I/O requirements. This module includes touch functionality and an SD card slot for expanded capabilities, all designed to operate reliably within a temperature range of -20°C to 70°C.
Availability: In Stock
| Screen Size: | 2.8 inches |
| Resolution: | 320 x 240 pixels |
| Display Color: | RGB 65K colors |
| Driver IC: | ILI9341 |
| Interface: | 4-wire SPI |
| Touch Functionality: | Yes |
| Operating Temperature: | -20°C to 70°C |
| VCC Power Voltage: | 3.3V to 5V |
| Power Consumption: | Approximately 90 mA |
| Logic IO Port Voltage: | 3.3V (TTL) |
Here's a summarized product description and parameters for the 2.8-inch 320x240 SPI Serial TFT LCD Module Display Screen with Touch Panel Driver IC ILI9341:
Product Description
- Screen Size: 2.8 inches
- Display Color: Supports 65K colors for rich color display
- Resolution: 320x240 pixels
- Touch Function: Available with or without touch capability
- Interface: 4-wire SPI serial bus for easy connection; minimal I/O required
- Additional Features:

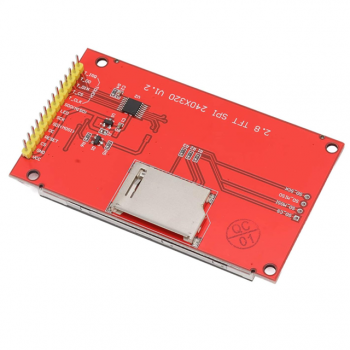

- Includes an SD card slot for easy expansion
- Comes with sample programs for easy implementation
- Built to military-grade standards for long-term stability
- Underlying driver technical support is provided
Product Parameters
| Parameter | Specification |
|---|---|
| Driver IC | ILI9341 |

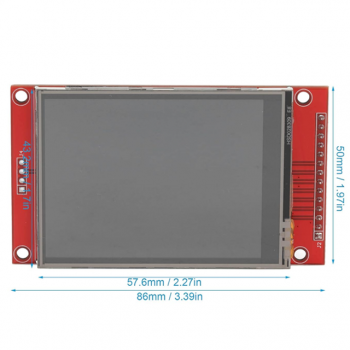

| Active Area (AA area) | 43.20 x 57.60 mm |
| Module PCB Size | 50.00 x 86.00 mm |
| Operating Temperature | -20° to 70°C |
| Storage Temperature | -30° to 80°C |
| VCC Power Voltage | 3.3V to 5V |
| Logic IO Port Voltage | 3.3V (TTL) |
| Power Consumption | Approximately 90mA |
