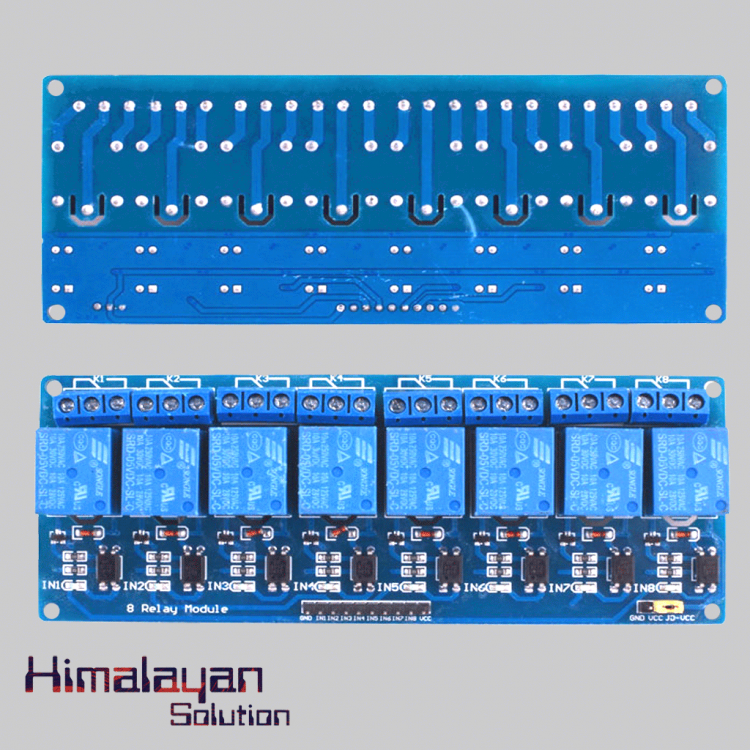

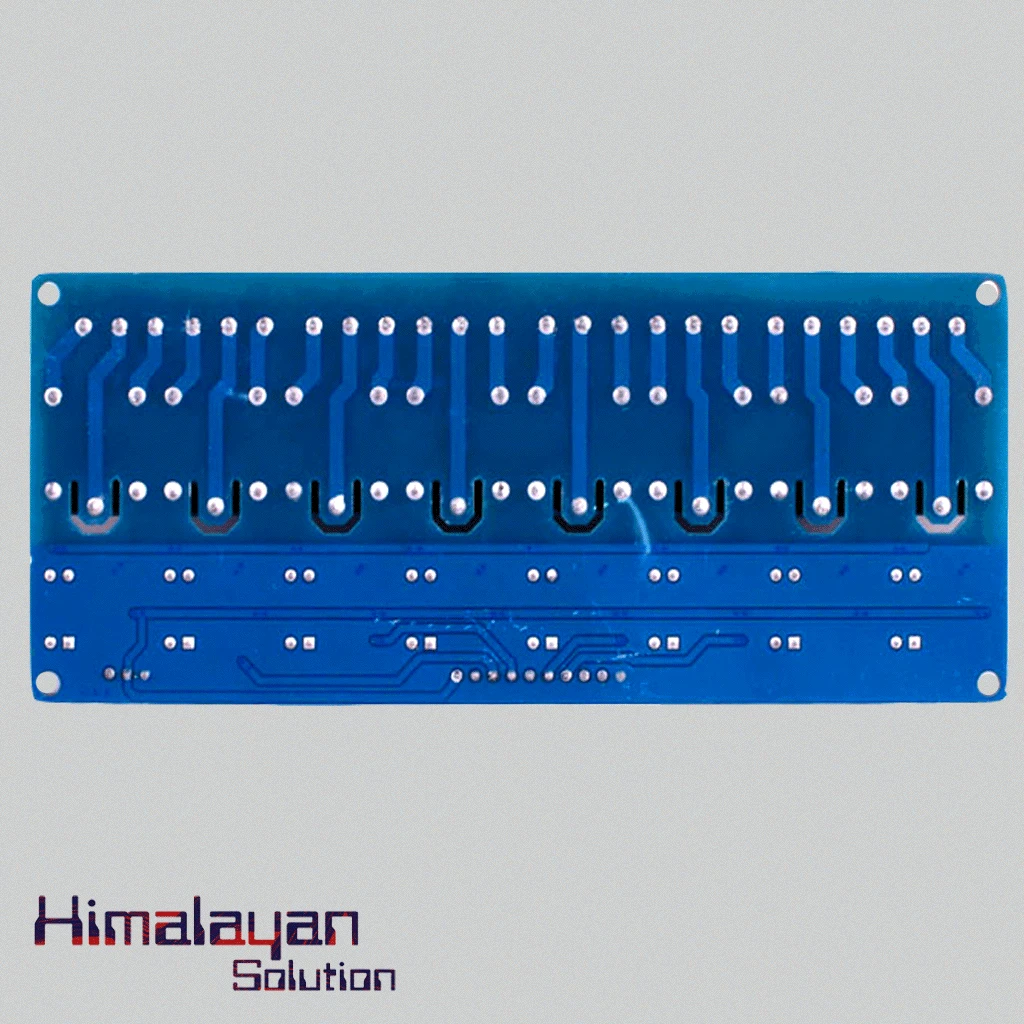

8 Channel Relay Module

The 8 channel 5V Relay module board is used to control high voltage and current load . It provides 8 relays for its use( we can control 8 application with this single board). It is good in safety with wide range of controllable voltage. It is Ideal for single chip microcomputer, household appliance control, etc. It has led indicator for power and status in-bulit. In this when jumper is connected to low pin the low level is trigger and when connected to high pin high level is trigger.

In Category:
  • Basic Electronics Components
  • Relay
  • modules
  • Availability: In Stock

    Operating Voltage 5 V
    Max. Switching Voltage  250VAC/30VDC
    Max. Switching Current 10A
    Driver Current 15-20mA
    Number of Relays 8
    Weight 116g
    Size 13.4 x 5.3 x 1.7 cm
