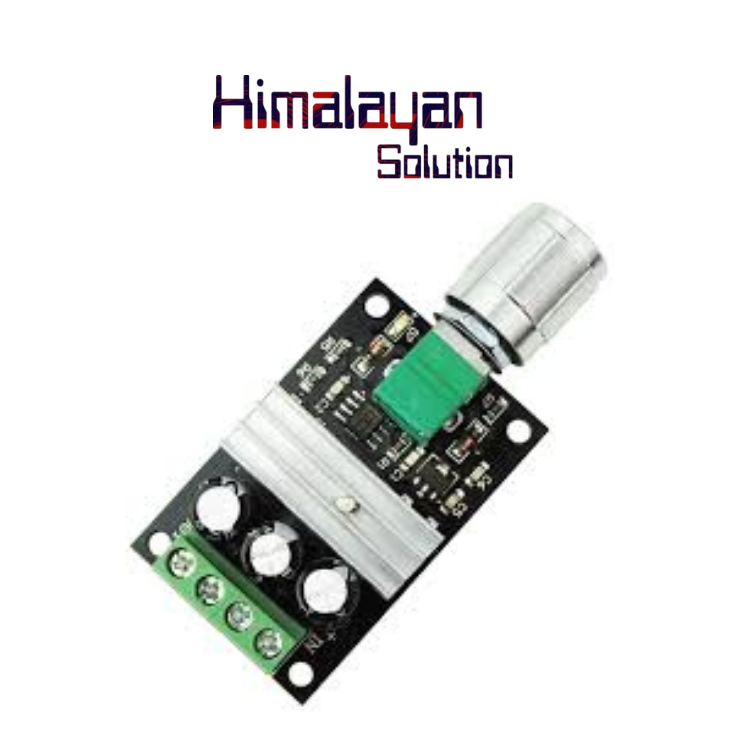

DC 6V 12V 24V 28V 3A PWM MOTOR SPEED CONTROL SWITCH CONTROLLER 1203BK

This PWM DC Motor Speed Controller allows controlling the speed of a motor with fully adjustable 0%-100%. The motor speed controller can easily provide a continuous current of 3A to your DC motor or other DC load.

---

Features:

• PWM DC Motor Speed Controller
• Speed of a motor is fully adjustable
• DC 6V 12V 24V 28V Supported

Specifications:

• Voltage range: DC6V - 28V
• Current range: Within 3A
• Switch function: None
• Speed range: 0-100%
• Dimension: 32 x 50 x 15mm
• Weight: 30 g

Application:

• This PWM Speed controller is for DC 6V 12V 24V 28V Motor.

Pinout:

• Motor+: Motor Positive Terminal
• Motor-: Motor Negative terminal
• Power+: DC 6V - 28V
• Power-: Gnd

Package Includes:

• 1 x DC 6V 12V 24V 28V 3A PWM Motor Speed Control Switch Controller 1203BK
