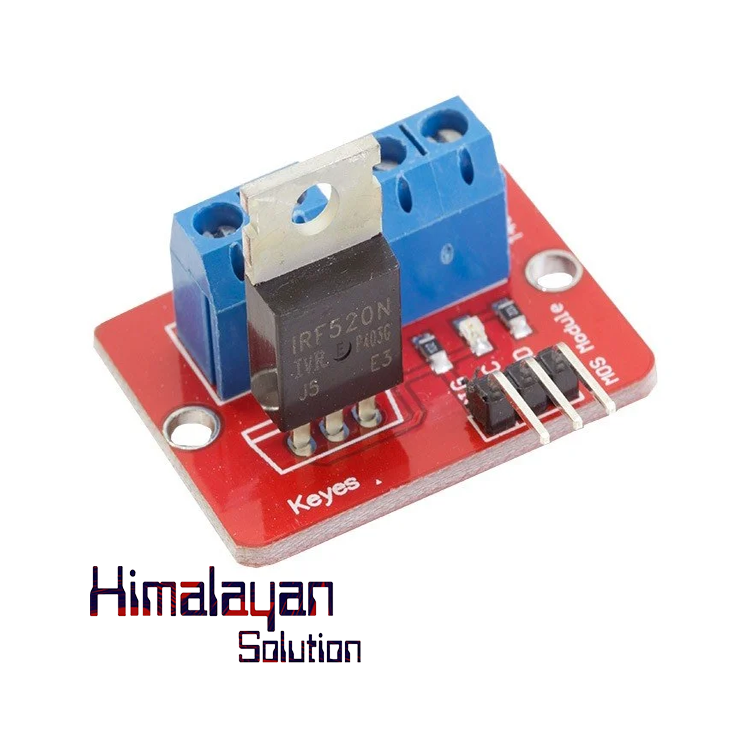

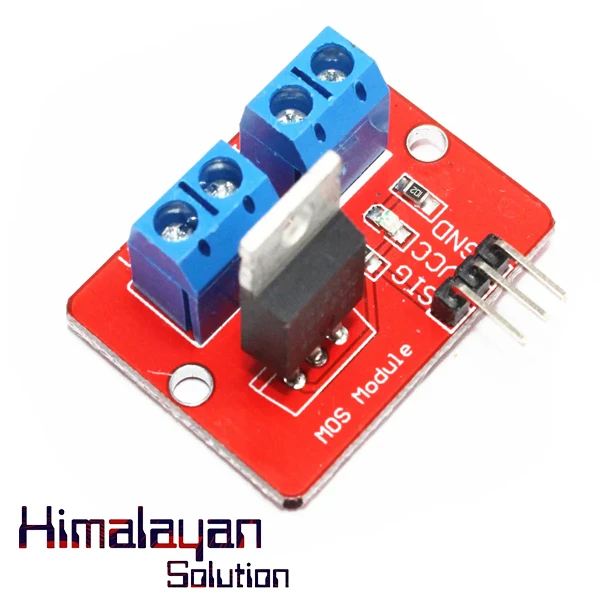

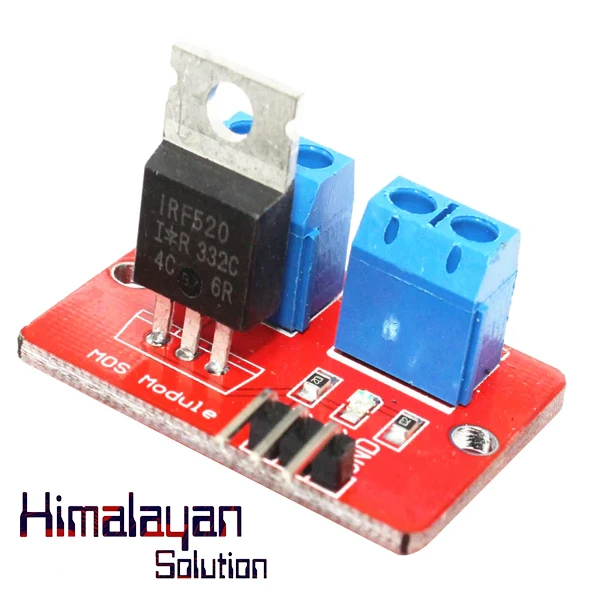

IRF520 MOSFET Driver Module

The IRF520 MOSFET Driver Module is a compact and easy-to-use power switching module that allows a microcontroller (like Arduino, ESP8266, Raspberry Pi, etc.) to control high-power DC loads such as motors, LEDs, pumps, and solenoids. It acts as a solid-state switch, allowing low-power control signals to manage high-current loads efficiently.

Features of IRF520 MOSFET Driver Module:

✔ Microcontroller Compatible: Works with 3.3V and 5V logic, making it compatible with Arduino, ESP8266, ESP32, Raspberry Pi, and other MCUs.

✔ Supports PWM Control: Can be used for dimming LEDs, motor speed control, and other pulse width modulation (PWM) applications.

✔ Handles Moderate Power Loads:

• Supports up to 24V DC loads.
• Rated for 5A, but 1-2A is recommended without additional cooling.

✔ Easy-to-Use Module Design:

• Simple 3-pin control interface (VCC, GND, SIG).
• Clearly labeled pins for easy wiring.

✔ Onboard Flyback Diode for Protection: Prevents voltage spikes when controlling inductive loads like motors, solenoids, and relays.

✔ Solid-State Switching: Acts as an electronic switch with no mechanical parts, increasing reliability.

✔ Compact and Lightweight: Small PCB design makes it easy to integrate into DIY electronics projects.
