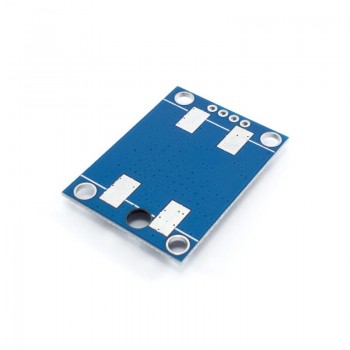

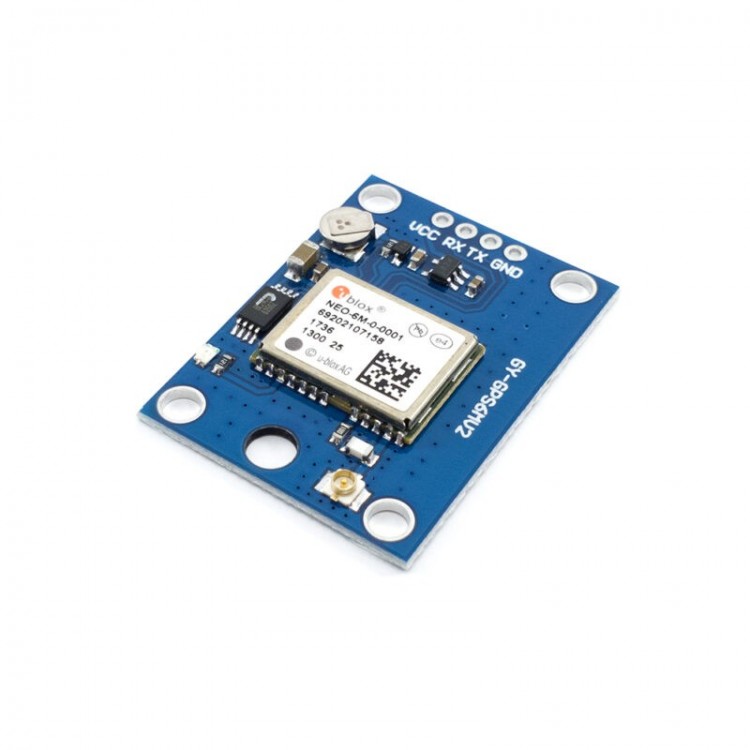

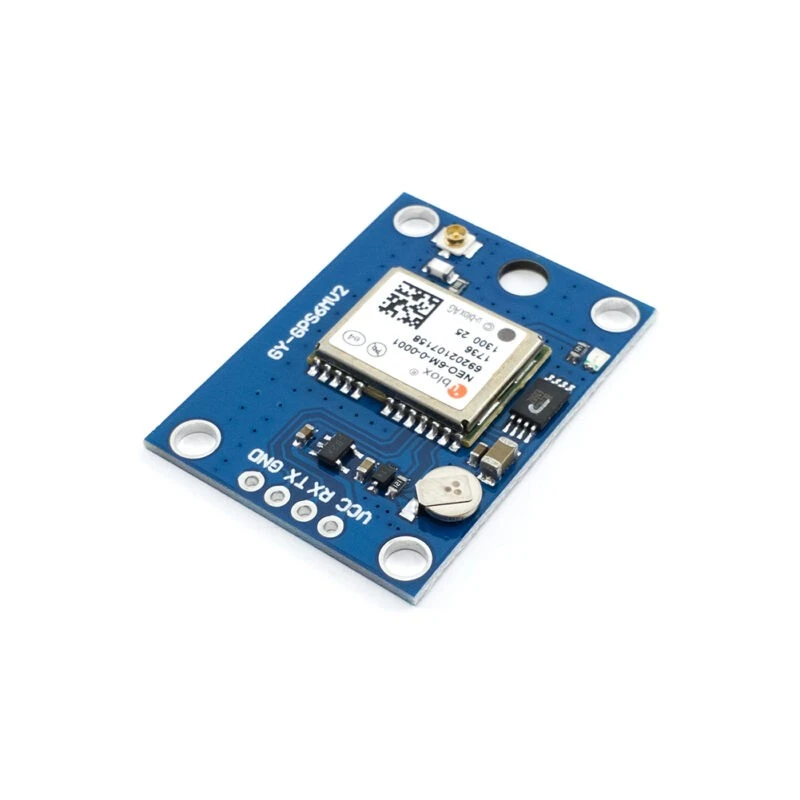

NEO-6M GPS Module

0 customer reviews | Add a review

Model: u-blox NEO-6M (Refurbished Module)
Supply Voltage Range: 3VDC – 5VDC
Comms Interface: UART
Time-To-First-Fix (Cold / Warm Starts): 27 Seconds
Time-To-First-Fix (Hot Start): 1 Second
Sensitivity: As low as -147dBm
Max Navigation Update Rate: 5Hz
Horizontal Positional Accuracy (GPS): 2.5m
On-board EEPROM and backup battery which saves configuration data when powered off
Module Dimensions: ~(26.3mm x 35.5mm x 3.6mm)
Mounting Hole Diameter: ~3.2mm (M3)
Mounting Hole Spacing (Centre to Centre): Long Side: ~30.4mm / Short Side: ~20.1mm
Model: u-blox NEO-6M (Refurbished Module)
Supply Voltage Range: 3VDC – 5VDC
Comms Interface: UART
Time-To-First-Fix (Cold / Warm Starts): 27 Seconds
Time-To-First-Fix (Hot Start): 1 Second
Sensitivity: As low as -147dBm
Max Navigation Update Rate: 5Hz
Horizontal Positional Accuracy (GPS): 2.5m
On-board EEPROM and backup battery which saves configuration data when powered off
Module Dimensions: ~(26.3mm x 35.5mm x 3.6mm)
Mounting Hole Diameter: ~3.2mm (M3)
Mounting Hole Spacing (Centre to Centre): Long Side: ~30.4mm / Short Side: ~20.1mm
