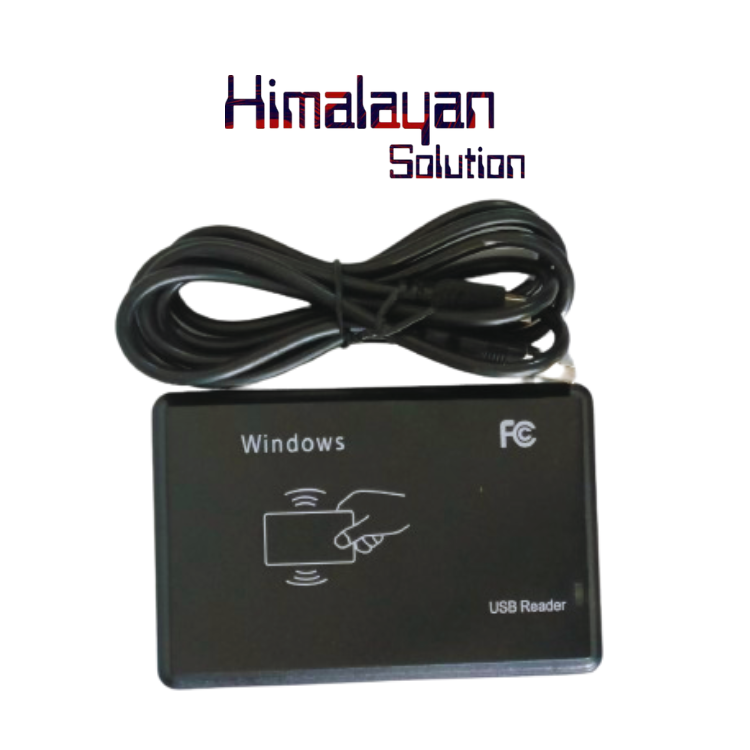

NFC Reader 13.56Mhz

0 customer reviews | Add a review

The D8 NFC Reader is a PC-linked reader compliant with Full Option NFC features, developed based on 13.56MHz contactless technology. It has 4 SAM (Secure Access Module) slots which can provide multiple high-level securities in contactless transactions. Post-deployment firmware upgrade is also supported, eliminating the need for additional hardware modification.
The D8 NFC reader is capable of the three modes of NFC, namely: card reader/writer, card emulation and peer-to-peer communication. It supports ISO 14443 Type A and B cards, MIFARE®, FeliCa, and ISO 18092–compliant NFC tags. It also supports other NFC devices with an access speed of up to 424 Kbps and proximity operating distance of up to 50mm (depending on tag type used). Compliant with both CCID and PC/SC, this plug-and-play USB NFC device allows interoperability with different devices and applications. It is thus ideal for unconventional marketing and advertising applications like smart poster

In Category:

Availability: In Stock

Enquiry

ACR1222L is an LCD-equipped PC-Linked NFC Contactless Reader with USB as its host interface. It is developed based on the 13.56 MHz RFID technology and the ISO/IEC 18092 standard. ACR1222L can support ISO14443 Type A and B cards, Mifare, FeliCa and all 4 types of NFC tags.

With its PC/SC compliance, ACR1222L ensures easy upgrade of PC/SC smart card applications to improve user interaction. It is equipped with 4 LEDs, a buzzer and an LCD that provide users with clear indications of the reader or application status. The 2-line graphic LCD has multiple language support, including Chinese, English, Japanese and some European languages. It allows interactive operation such as scrolling up and down, left and right, etc. Moreover its three built-in SAM slots provide enhanced security during contactless operations.

Typical applications of ACR1222L include e-payment, loyalty programs and access control.

APPLICATIONS:

  • Banking & Payment
  • e-Healthcare
  • Network Security
  • Access Control
  • e-Purse & Loyalty
  • Transportation
