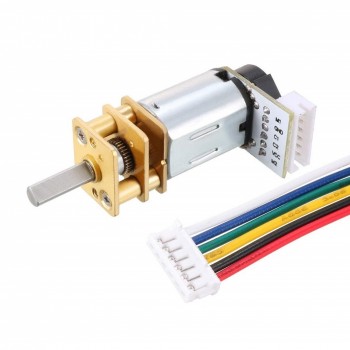

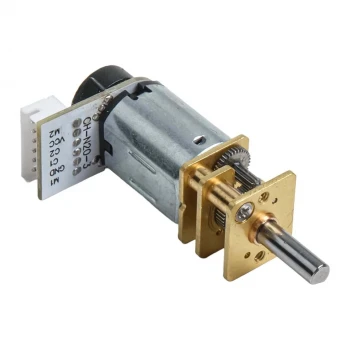

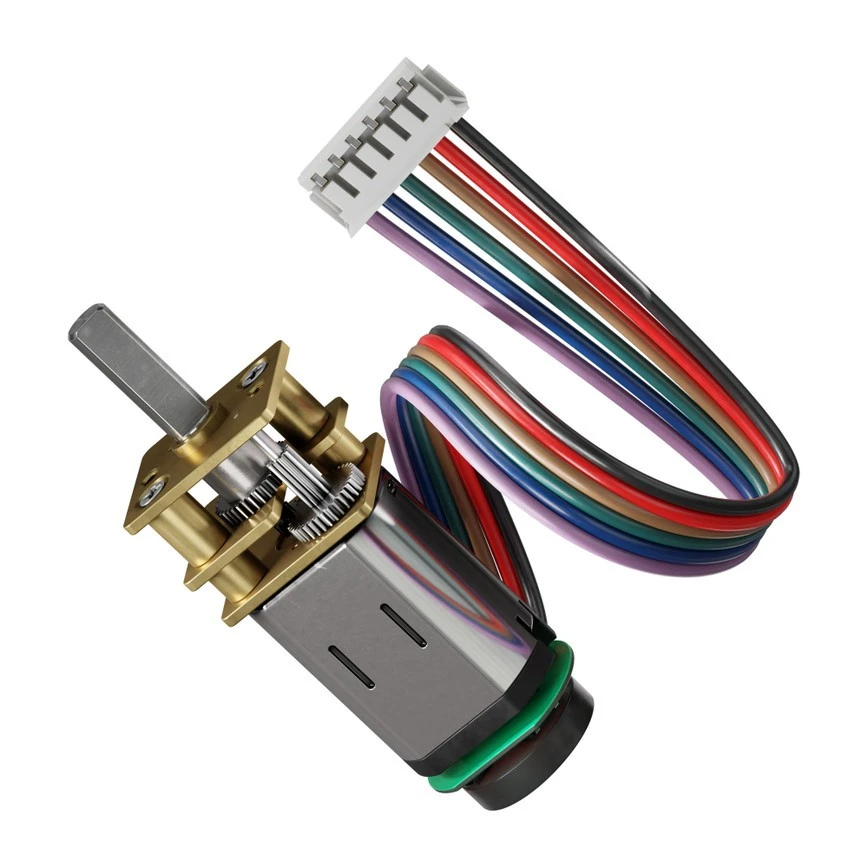

Single Phase N20 6V 600RPM Micro Metal Gear Motor With Encoder
The Single Phase N20 6V 600RPM Micro Metal Gear Motor with Encoder is a compact DC motor designed for precise speed and position control. It operates at 6V DC and delivers a speed of 600 RPM. Built with a durable metal gearbox and an integrated encoder, it provides reliable performance in small-scale robotics and automation projects. Ideal for Arduino and DIY applications
Availability: In Stock
| Phase | Single Phase |
| Rated Voltage | 6v Dc |
| No-Load Speed | 600 Rpm |
| Gearbox Type | Metal Gearbox |
| Encoder: Integrated | Encoder: Integrated |
| Encoder Output: | A & B channel pulse output |
| Shaft Type | D-type shaft |
| Shaft Diameter: | 3mm |
| Shaft Length | Approx. 10 mm |
| Gear Ratio: | 30:1 (typical for 500 RPM) |
| Direction Contro | Reversible by polarity change |
| Noise | Low |
| Mounting: | Standard N20 mounting holes |

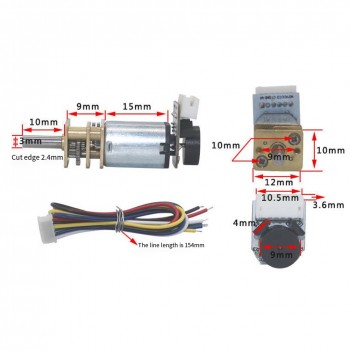

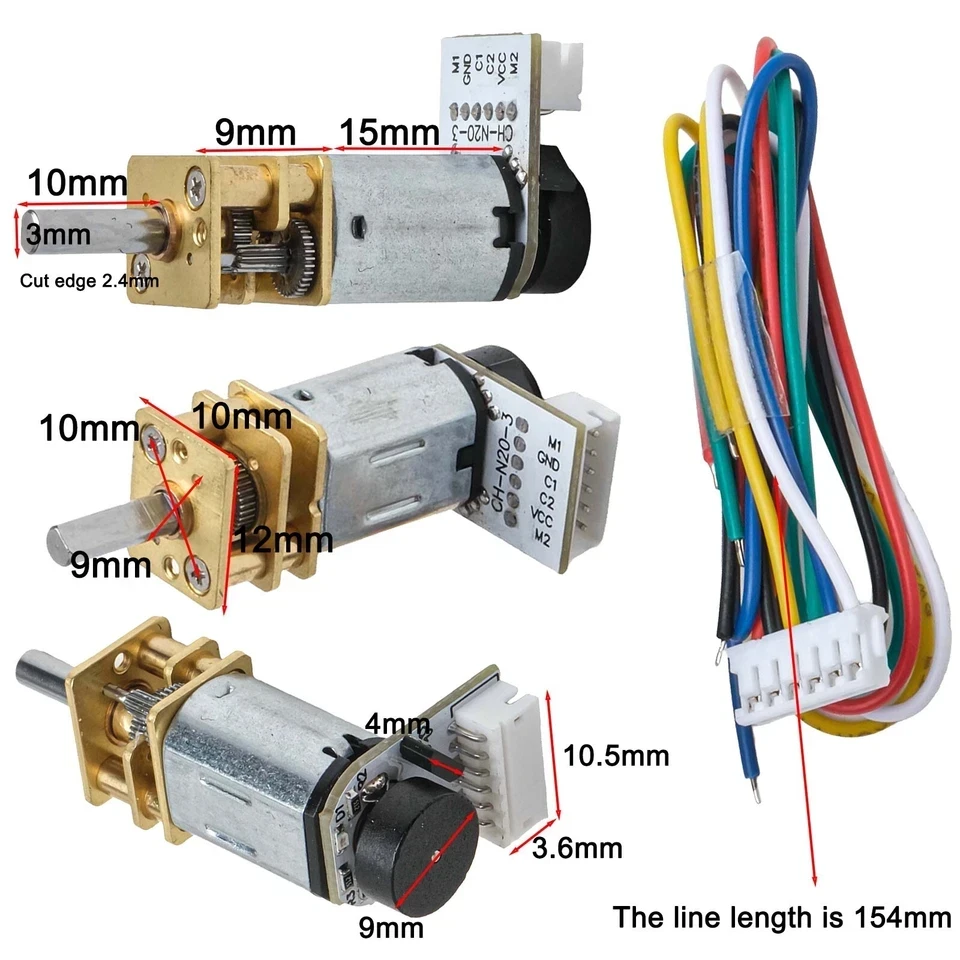

| Motor Body Size | Approx. 12 × 10 × 26 mm (without shaft) |
| Weight: | Approx. 10–15 g |
| Operating Temperature | –10°C to +60°C |
The Single Phase N20 6V 600RPM Micro Metal Gear Motor with Encoder is a high-precision, compact DC motor designed for applications that require accurate speed, position, and torque control. Operating at 6V DC, this motor delivers a steady 600 RPM, making it ideal for small robotic and automated systems.
Equipped with a metal gearbox, this motor offers enhanced durability, higher torque output, and long-lasting performance compared to plastic-gear motors. The built-in encoder provides real-time feedback on speed and rotation, enabling precise control for closed-loop systems. This feature is particularly useful in robotics, conveyor systems, and automation tasks where exact movement is required.
The N20 micro motor size ensures easy integration into compact
