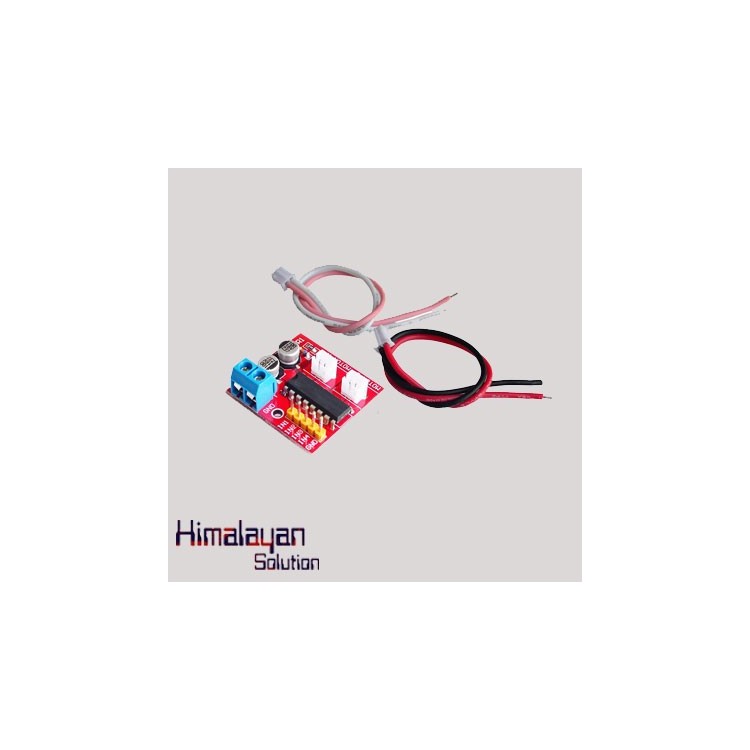

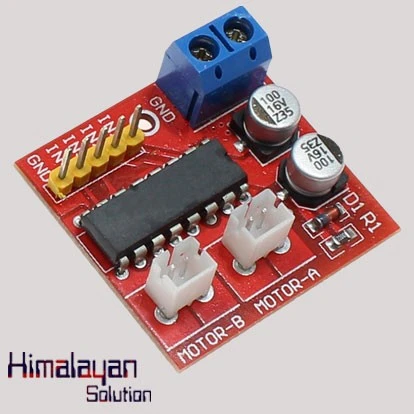

Xy-25Ad Motor Driver
This driver module is based on an unknown H-bridge, a high current, low voltage dual full-bridge driver. It can drive up to 2 DC motors up to 2Amp each, or drive one stepper motor or 2 solenoids up to 1.5 Amp each continuously and 2.5 Amp at peak.
Availability: In Stock
| Driver | Unknown H Bridge |
| Power Supply | DC 2V - 10V |
| Motor current | 2.5A Peak, 1.5A Continues each bridge |
| Current | 0.1uA |
| Mounting hole diameter | 2mm |
The driver can control both motor RPM and direction of rotation. The RPM is controlled using PWM input to ENA or ENB pins, while of rotation direction is controlled by supplying high and low signal to IN1-IN2 for the first motor or IN3-IN4 for the second motor. This Dual H-Bridge driver is capable of driving voltages from 2V up to 10V.
