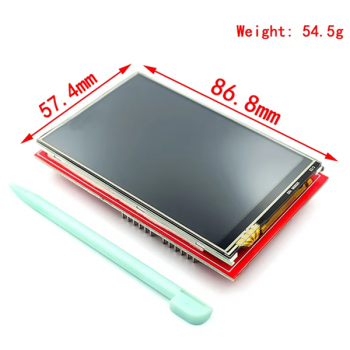

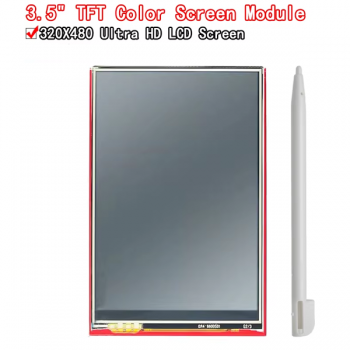

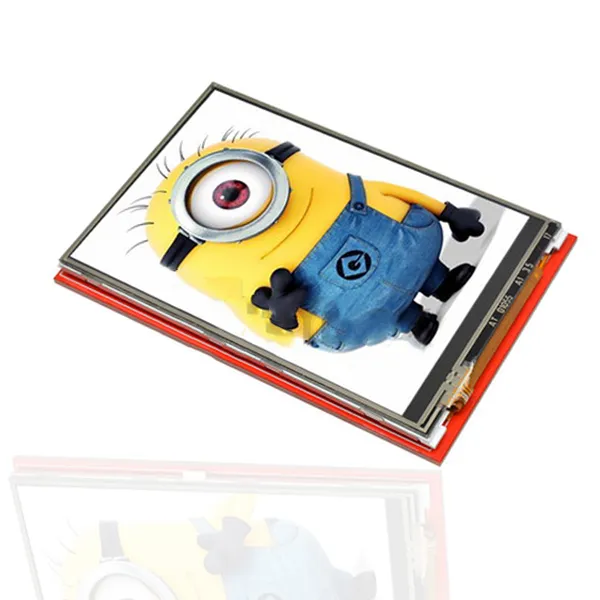

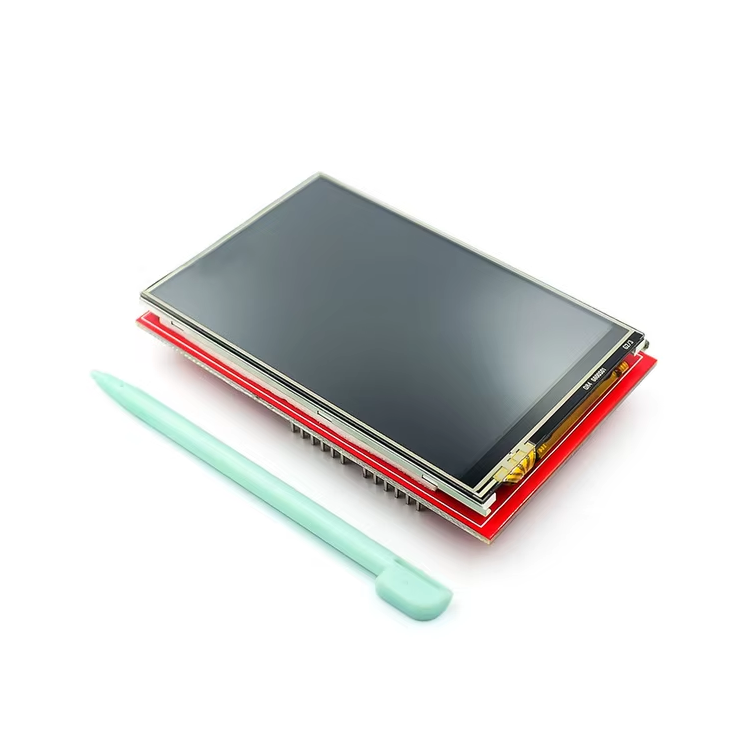

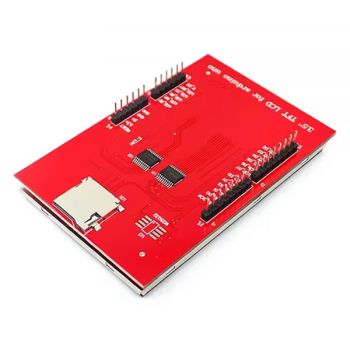

3.5 inch TFT LCD Touch Screen Module ILI9486 Driver for Arduino UNO MEGA2560 Board

The 3.5-inch TFT LCD Touch Screen Module with the ILI9486 driver is a versatile display for Arduino boards, compatible with both the Arduino UNO and MEGA2560. Here’s a breakdown of its key features and specifications:

Specifications:

• Display Type: TFT LCD
• Screen Size: 3.5 inches
• Resolution: 480x320 pixels
• Driver IC: ILI9486
• Voltage Requirements: 5V / 3.3V (making it compatible with most Arduino boards)
• Touch Panel: YES (Available in Touch).

Compatibility:

• Arduino UNO and MEGA2560: Designed for direct connection to these popular Arduino boards, making it easy to integrate into projects.

Features:

1. High Resolution: With a 480x320 resolution, it provides good detail for displaying graphics, images, and text.
2. Color Display: The ILI9486 driver allows for full-color display, ideal for UI interfaces and graphics.
3. Touch Screen Option: The touch panel version enables interactive applications, suitable for custom controls or display feedback.

Usage Notes:

• Library Support: Many libraries, such as Adafruit GFX and MCUFRIEND_kbv, support the ILI9486 driver, simplifying coding and customization.
• Power Considerations: Ensure that the board's voltage matches the screen’s requirements, as the module can work with both 3.3V and 5V but needs proper setup.

This screen is ideal for projects that require a detailed and interactive display, such as DIY interfaces, games, or information panels on Arduino-based devices.
