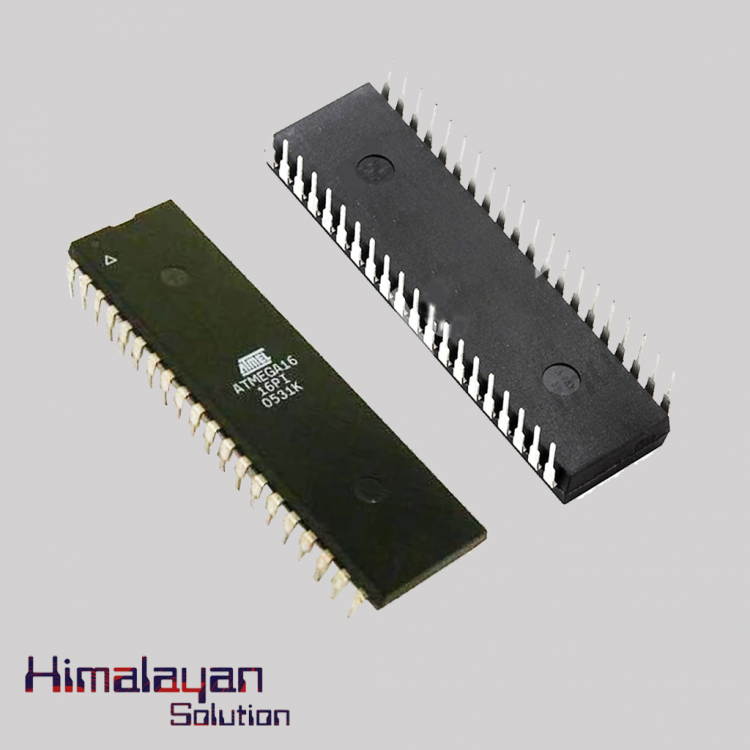

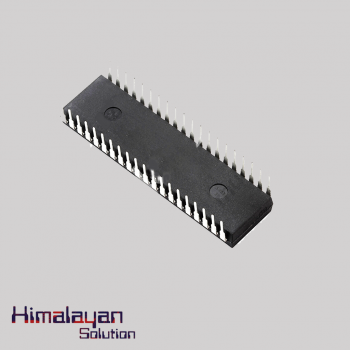

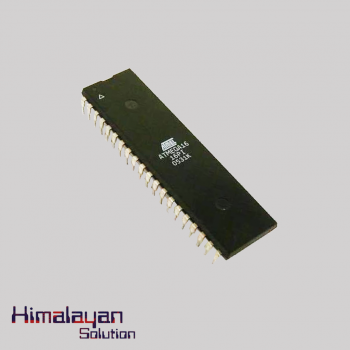

AT Mega16 IC
The AT Mega 16 AVR RISC based 8 bit microcontroller microchip. It has 131 powerful instruction for single clock cycle execution. It has 16 kb flash memory with 512B EEPROM, 1 KB SRAM. It is mostly used in many projects where a simple low powered micro controller is required. It has on chip 2 cycle multiplier with 32 general purpose working registers.
Availability: In Stock
| Family Name | ATmega |
| Device Core | AVR |
| Data Bus Width | 8Bit |
| Instruction Set Architecture | RISC |
| Maximum Clock Rate | 16MHz |
| Maximum Speed | 16MHz |
| Number Of Programmable I/Os | 32 |
| Number Of Timers | 3 |
| On-Chip ADC | On-Chip ADC 8-chx10-bit |
| Program Memory Size | 16KB |
| Program Memory Type | Flash |
| RAM Size | 1KB |
| Interface Type | JTAG/SPI/UART |
| Operating Supply Voltage | 4.5V To 5.5V |
| Operating Temperature | -40°C TO 85°C |
| Mounting | Through Hole |
| Pin Count | 40 |
| Width | 13.97mm(Max) |
| Height | 4.83mm(Max) - 0.38mm(Min) |
| Length | 52.58mm(Max) |
| Type | Microcontroller |
