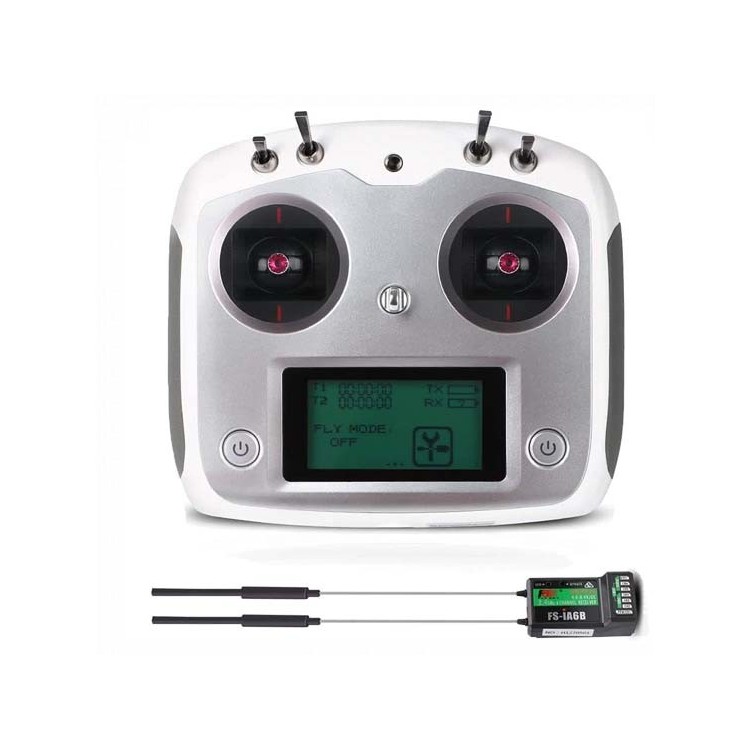

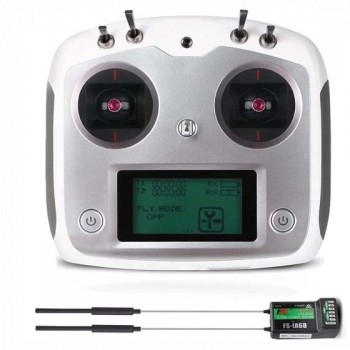

Fly Sky FS-i6S Digital Proportional Radio Control System

Key Features:

1. Unique ID Binding:

   • Each transmitter has a unique ID. When binding with a receiver, the receiver saves this unique ID and only accepts data from the paired transmitter. This prevents interference from other transmitters and enhances safety.

2. Frequency Range and Hopping Algorithm:

   • Operates in the 2.405 to 2.475 GHz frequency range.

   • The frequency band is divided into 142 independent channels, with each radio system using 16 different channels and 160 different hopping algorithms. This minimizes the chance of interference.

3. Antenna and Receiver:

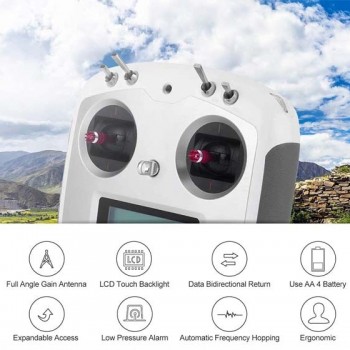

   • Equipped with a high-gain, multi-directional antenna that covers the entire frequency band, paired with a high-sensitivity receiver to ensure jamming-free, long-range radio transmission.

4. Low Power Consumption:

   • Utilizes low-power electronic components and a sensitive receiver chip with intermittent signal RF modulation to reduce power consumption further.

5. Bidirectional Communication:

   • Capable of sending and receiving data. The transmitter can receive data from sensors (like temperature, altitude) and supports servo calibration and i-BUS communication.

6. Additional Features:

   • Low voltage alarm function.

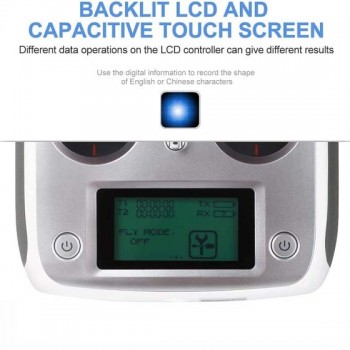

   • 3-inch touchscreen interface for easier control.

   • Free software updates available online.

   • Switchable control mode for personalized transmitter stick settings.

Flysky FS-i6S Transmitter Specifications:

• Model: FS-i6S

• Channel: 10 channels

• Control Mode: Switchable from Mode 1 to Mode 4

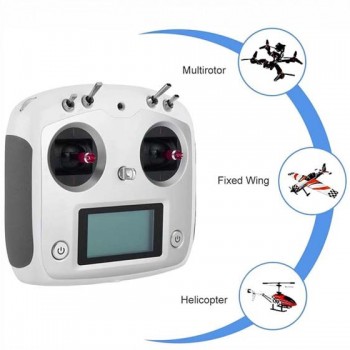

• Model Type: Airplane, multicopter, and helicopter

• RF Range: 2.4055-2.475 GHz

• Bandwidth: 500 KHz

• RF Power: Less than 20 dBm

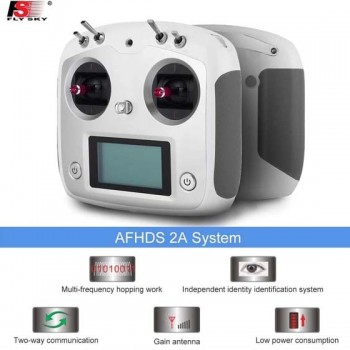

• System: AFHDS 2A

• Code Type: GFSK

• Sensitivity: 4096

• Low Voltage Alarm: Yes (triggers below 4.2V)

• Ports: PS2/USB

• Power Input: 4 x AA batteries (not included)

• Size: 179 x 161 x 81 mm

• Weight: 437 g

Flysky FS-iA6B Receiver Specifications:

• Model: FS-iA6B

• Channel: 6 channels

• Frequency Range: 2.4055-2.475 GHz

• Bandwidth: 140 channels

• Transmitting Power: ≤ 20 dBm

• RF Receiver Sensitivity: -105 dBm

• 2.4G Mode: Second-generation enhanced automatic FM digital system

• Encoding: GFSK

• Antenna Length: Dual antennas (26 mm each)

• Input Power: 4.0-6.5V DC

• Size: 47 x 26.2 x 15 mm

• Weight: 14.9 g

• Color: Black

• i-Bus Interface: Yes

• Data Acquisition Interface: Yes

• Compatible Model Types: Airplane, glider, helicopter

• Compatible Transmitters: FS-i4, FS-i6, FS-i10, FS-GT2E, FS-GT2G

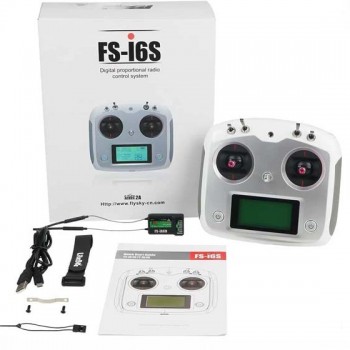

Package Includes:

• 1 x Flysky FS-i6S transmitter

• 1 x FS-iA6B receiver

Applications:

The Flysky FS-i6S transmitter and FS-iA6B receiver are ideal for controlling various types of RC aircraft (airplanes, helicopters, multicopters) with enhanced interference immunity, safety, and a wide range of control features. The system is particularly useful in environments where reliable, long-range communication is crucial.
