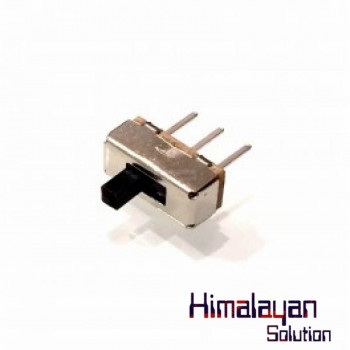

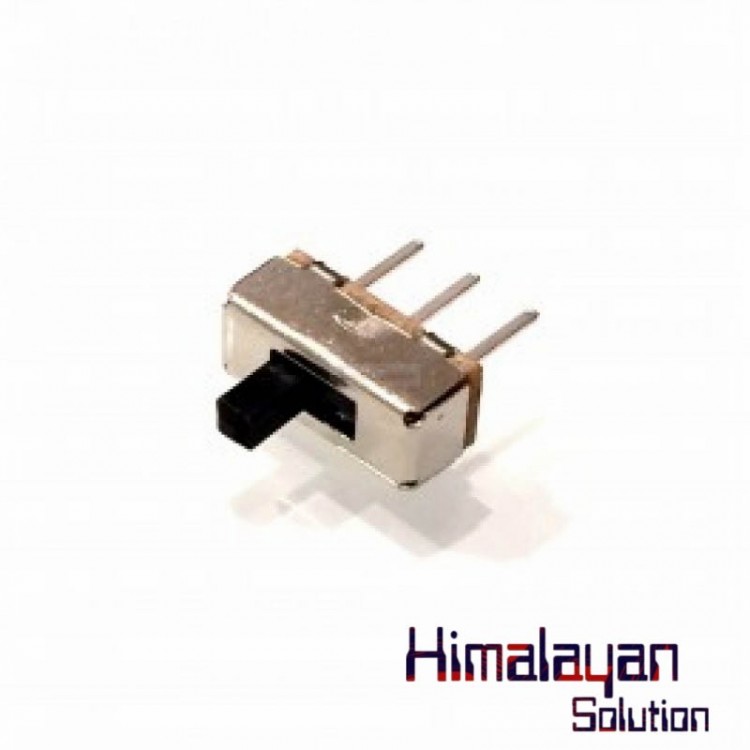

Slide Switch Small

Slide Switches are an electromechanical device used to control current flow in a circuit path. Devices in this family are actuated by sliding a mechanical switch. The characteristics are circuit, contact timing, switch function, current rating, voltage rating (AC or DC), and actuator type.

In Category:

Basic Electronics Components

Availability: In Stock

Email to a Friend

Enquiry

Contact Rating	12 V DC, 200 MA
Contact Resistance	<50 MOHMS
Insulation Resistance	> 100 MOHMS at 500 V DC
Operating Temperature	-10 Degree Celsius to + 60 Degree Celsius

Slide switches are mechanical switches using a slider that moves (slides) from the open (off) position to the closed (on) position. They allow control over current flow in a circuit without having to manually cut or splice wire. This type of switch is best used for controlling current flow in small projects.
