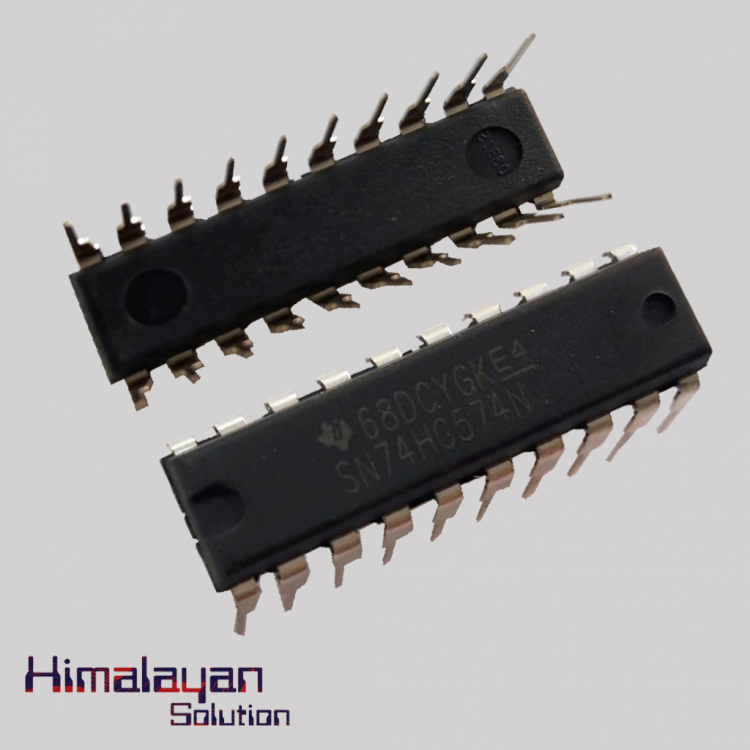

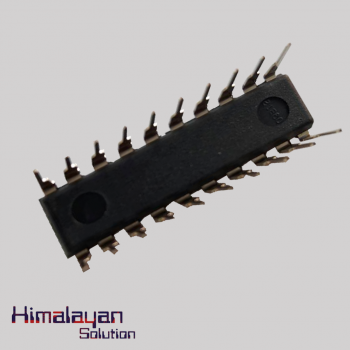

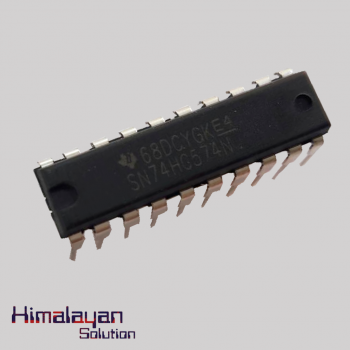

SN74HC574 IC
The SN74HC574N IC is a octal edge triggered D-type flip-flops with 3- state outputs. It is specially designed for bus driving. It is also suitable for various things like: - implementing buffer registers, I/O ports, bidirectional bus drivers, working resisters and many more
Availability: In Stock
| Name | SN74HC574N IC |
| 3-State Output | Yes |
| Voltage(Nom)(V) | 3.3,5 |
| Bits | 8 |
| ICC @ Nom Voltage(Max)(mA) | 0.08 |
| F @ Nom Voltage(Max)(Mhz) | 28 |
| Operating Temperature Range(C) | -40 to 85 |
| Technology Family | HC |
| Schmitt Trigger | No |
| Tpd @ Nom Voltage(Max)(ns) | 38 |
| VCC(Max)(V) | 6 |
