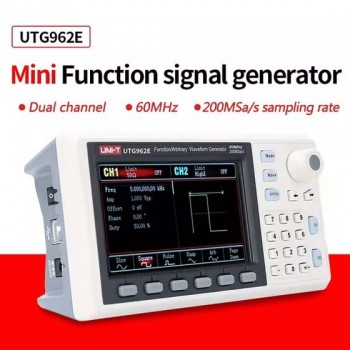

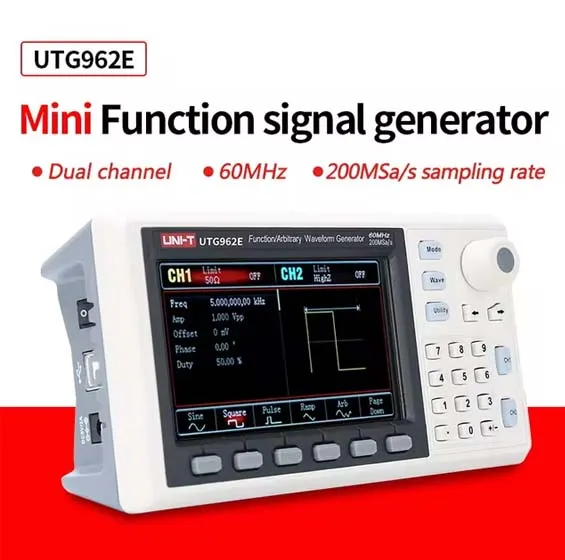

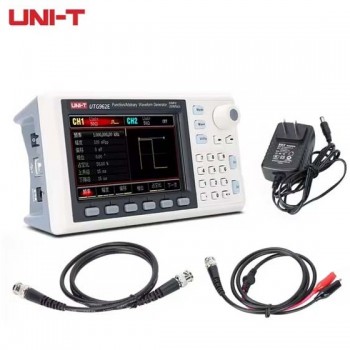

UNI-T UTG932E Function/Arbitrary Waveform Signal Generator Dual Channel
The UTG962E Waveform Generator is a versatile and high-precision signal generator designed to meet the diverse needs of engineers, technicians, and educators. It offers a wide range of built-in arbitrary waveforms, various modulation types, and advanced sweep modes to facilitate complex waveform generation and analysis. The dual-channel output, combined with a high refresh rate and deep memory, makes this device perfect for applications in research, development, testing, and educational labs.
Availability: In Stock
| Model Number: | UTG962E |
| Frequency Range: | 60 MHz |
| Square/Pulse Frequency: | 20 MHz |
| Channels: | 2 Channels |
| Sampling Rate: | 200 MSa/s |
| Memory Depth: | 4kpts |
| Vertical Resolution: | 14 Bits |
| Number of Built-in Arbitrary Waveforms: | 24 |
| Modulation Types: | AM, FM, FSK, PM |
| Sweep Modes: | Linear, Logarithmic |
| Frequency Counter Range: | 100 mHz - 100 MHz |
| Display Size: | 4.3 inches |
Key Features:
-
60 MHz Frequency Range: Supports frequencies up to 60 MHz for a wide variety of applications.
-

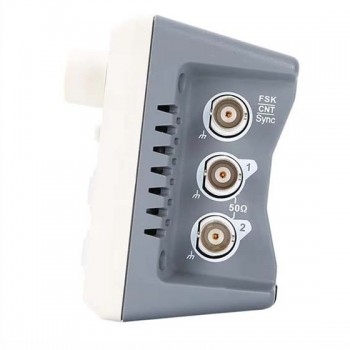

Dual-Channel Output: Two independent channels for simultaneous signal generation and testing.
-
High Sampling Rate: 200 MSa/s refresh rate ensures accurate signal reproduction.
-
Memory Depth: 4kpts memory for storing and generating complex waveforms.
-
14-bit Vertical Resolution: High resolution for detailed and accurate waveform generation.
-
24 Built-in Arbitrary Waveforms: Includes various standard and arbitrary waveforms for versatile testing scenarios.
-
Multiple Modulation Types: Supports AM, FM, FSK, and PM modulation types for comprehensive signal analysis.
-
Sweep Modes: Linear and logarithmic sweep modes allow for detailed frequency response testing.
-
Frequency Counter: Accurate frequency measurement from 100 mHz to 100 MHz.
-

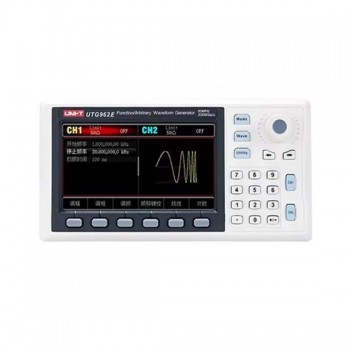

User-Friendly Display: 4.3-inch display for clear visualization and easy operation.
-
Compact and Lightweight Design: Portable design with a small footprint (7 in x 3 in x 4 in) and a lightweight build (1 lb).
What is the maximum frequency supported by the UTG962E?
The UTG962E features two independent channels (2Ch), allowing simultaneous signal generation.
The waveform generator supports 24 built-in arbitrary waveforms, including sine, square, triangle, ramp, and custom waveforms.
Yes, it supports AM, FM, FSK, and PM modulation types for signal analysis and testing.
Yes, the UTG962E has a memory depth of 4kpts for storing and recalling complex waveforms.
