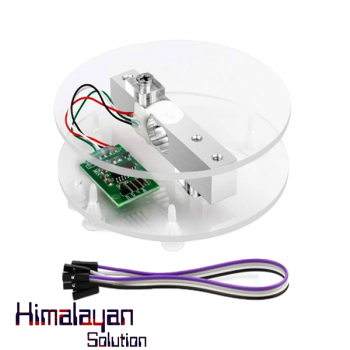

Weight Sensor Kit 10 Kg Load Cell With Hx711 Module Shell And 4pcs Dupont Wire Kit

The Weight Sensor Kit (10kg Load Cell + HX711 Module + Shell + Dupont Wires) is a great choice for building digital weighing scales or force measurement systems. Here’s a breakdown of the kit components and how to use them.

🔹 Kit Components

1. 10kg Load Cell (Strain Gauge)

   • Measures up to 10kg (22 lbs).
   • Aluminum alloy body with 4 strain gauges in a Wheatstone bridge configuration.
   • Wires: Red (E+), Black (E-), White (A-), Green (A+).

2. HX711 Module (24-bit ADC)

   • Converts the weak analog signal from the load cell to a digital value.
   • Provides high precision weight measurement.
   • Works with Arduino, ESP32, Raspberry Pi.

3. Protective Shell

   • Provides a stable mounting for the load cell.

4. 4pcs Dupont Wires

   • Used to connect the HX711 to a microcontroller.
