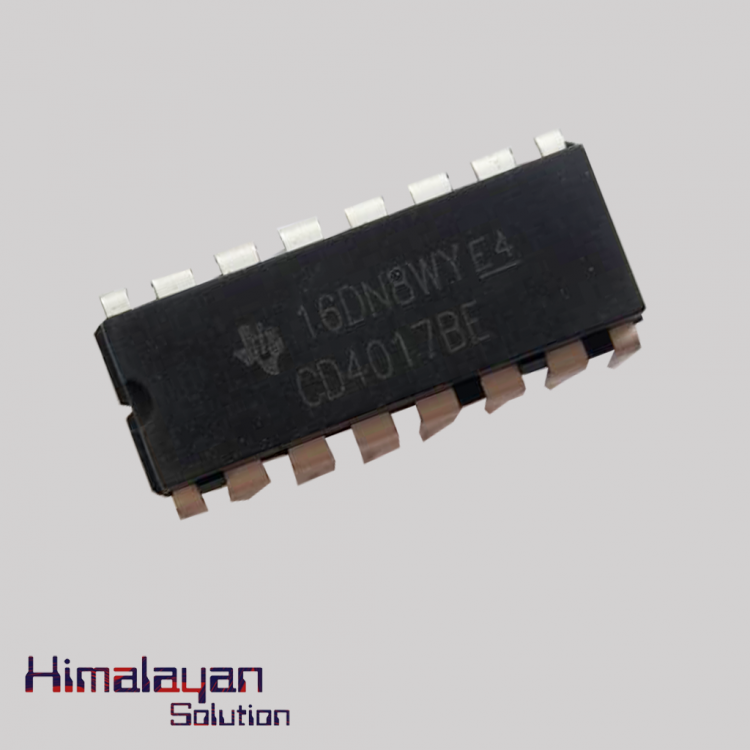

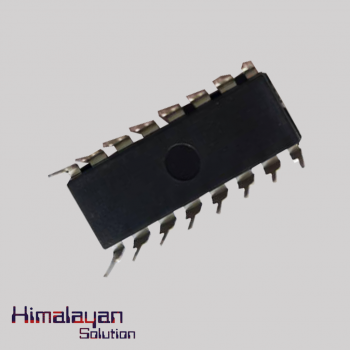

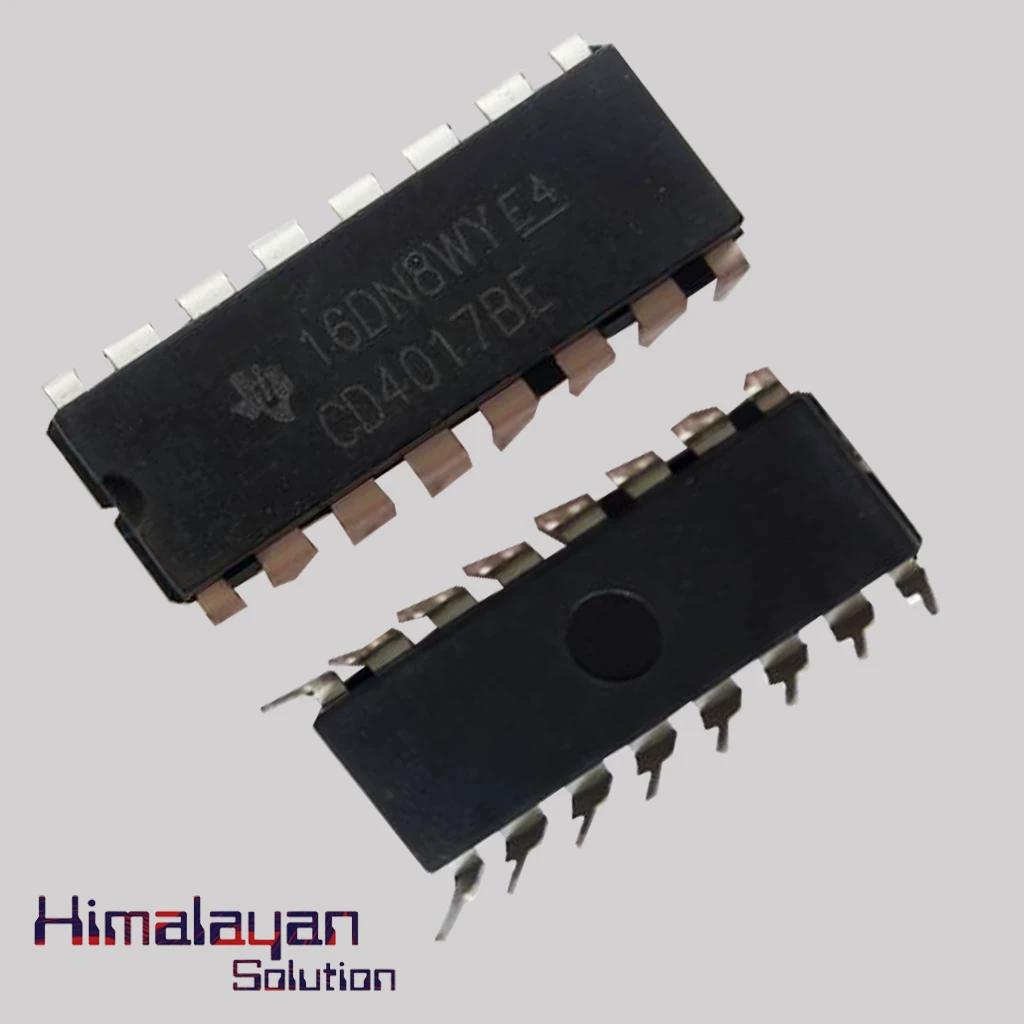

CD 4017 IC
The CD4017BE CMOS Decade Counter is a counter having 10 decoded outputs. It performs fully static operation. It has various applications such as : - Decade counter/decimal decode display, Binary counter/decoder, Frequency division, Counter control/timers, Divide-by-N counting and many more.
Availability: In Stock
| Logic Type | Counter, Decade |
| Number Of Elements | 1 |
| Reset | Asynchronous |
| Count Rate | 5.5MHz |
| Voltage Supply | 3 V ~ 18 V |
| Mounting Type | Through Hole |
| Number Of Bits | 5 |
| Logical Function | Counter/Divider |
| Output Type | Standard |
| Propagation Delay Time | 650ns |
| Operating Temperature Classification | Military |
| Direction | Up |
| Number Of Bits Per Element | 10 |
| Timing | Synchronous |
| Trigger Type | Positive Edge |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Number Of Elements | 1 |
