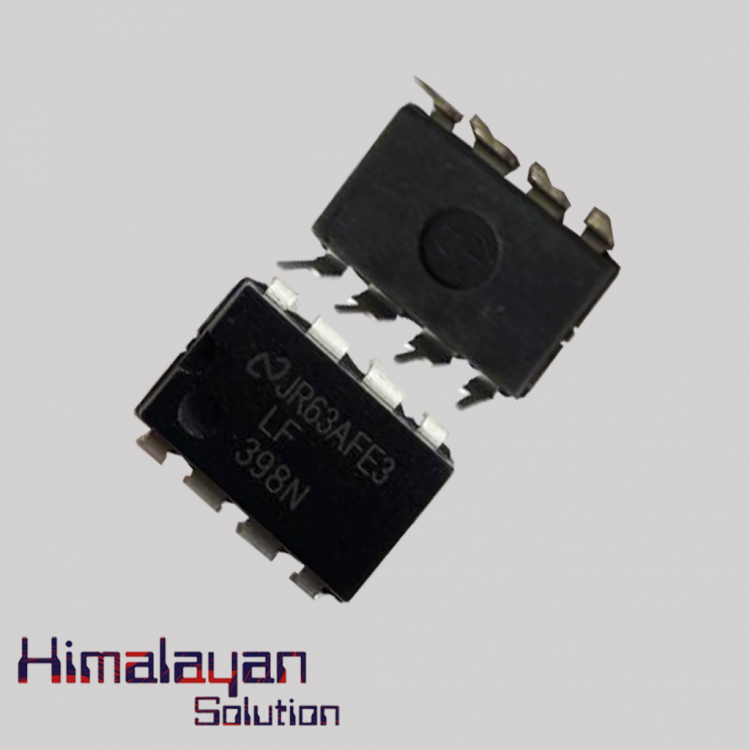

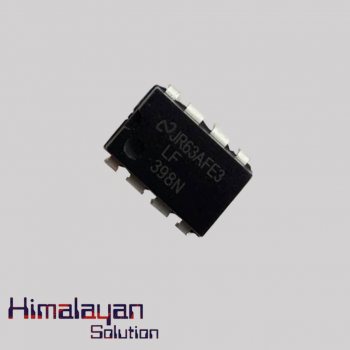

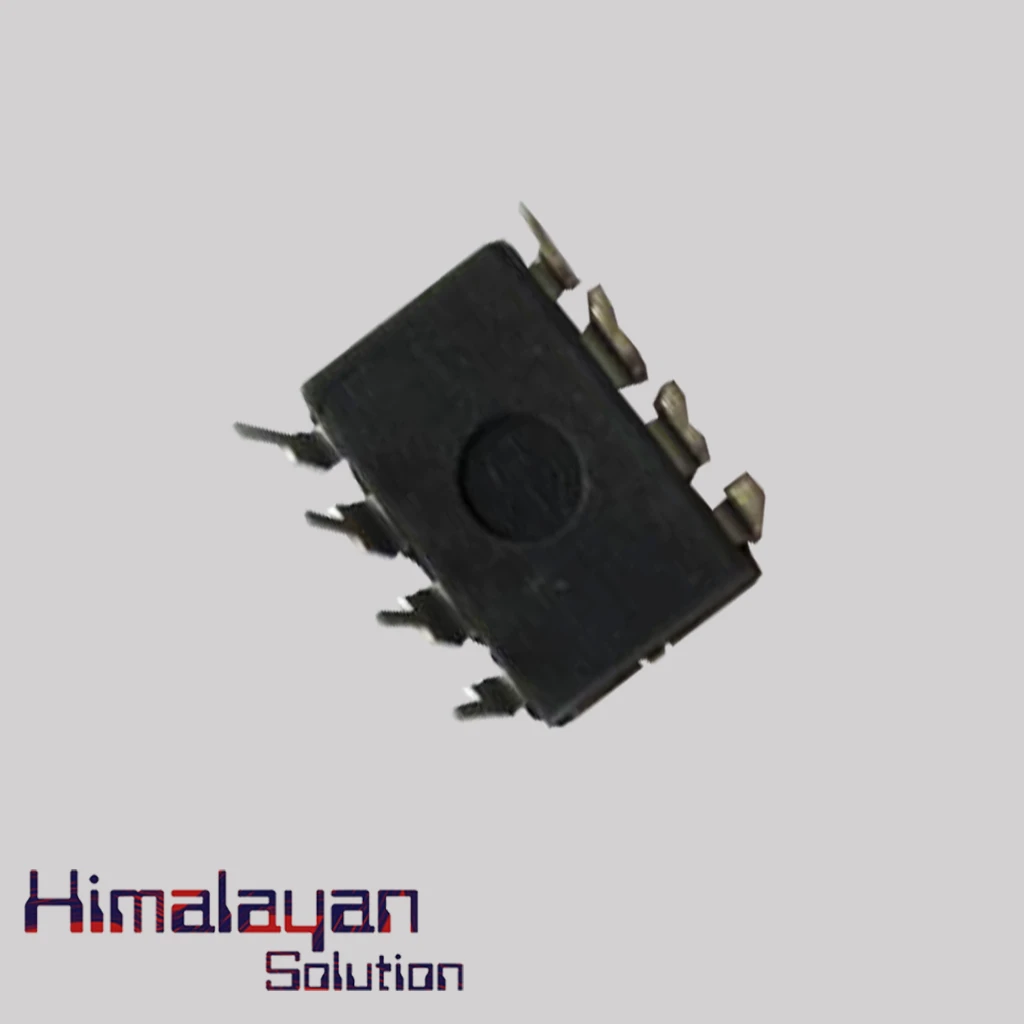

LF398N IC
The LF398N is an IC which consists of monolithic sample and hold circuit. This IC uses BI-FET technology to obtain ultra-high DC accuracy with fast acquisition of signal and low droop rate. It has various features like: - Low output noise in hold mode, Wide Bandwidth, High supply rejection ratio in sample or hold, Low Input Offset, 0.5 mV typical hold step at Ch = 0.01 µF, Logic input compatible with TTL, PMOS, CMOS and many more. It can be suitable for various applications like: - DC and AC zeroing, Ramp generators with variable reset level, Integrators with programmable reset level, 2-channel switches, Staircase generators and many more.
Availability: In Stock
| Name | LF398N IC |
| Supply Voltage Range | ±5 V DC to ±18 V DC |
| Power Dissipation | 500 mW |
| Operating Ambient Temperature Range | 0°C to 70°C |
| Logic-to-logic Reference Differential Voltage Range | 7 V to -30 V |
| Output Short Circuit Duration | Indefinite |
| Hold Capacitor Short Circuit Duration | 10 sec |
| Storage Temperature | -65°C to 150°C |
| Gain Accuracy | 0.002% |
| Package | DIP, 8 Pin Standard 0.300 inch |
