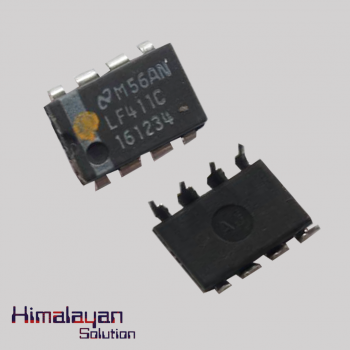

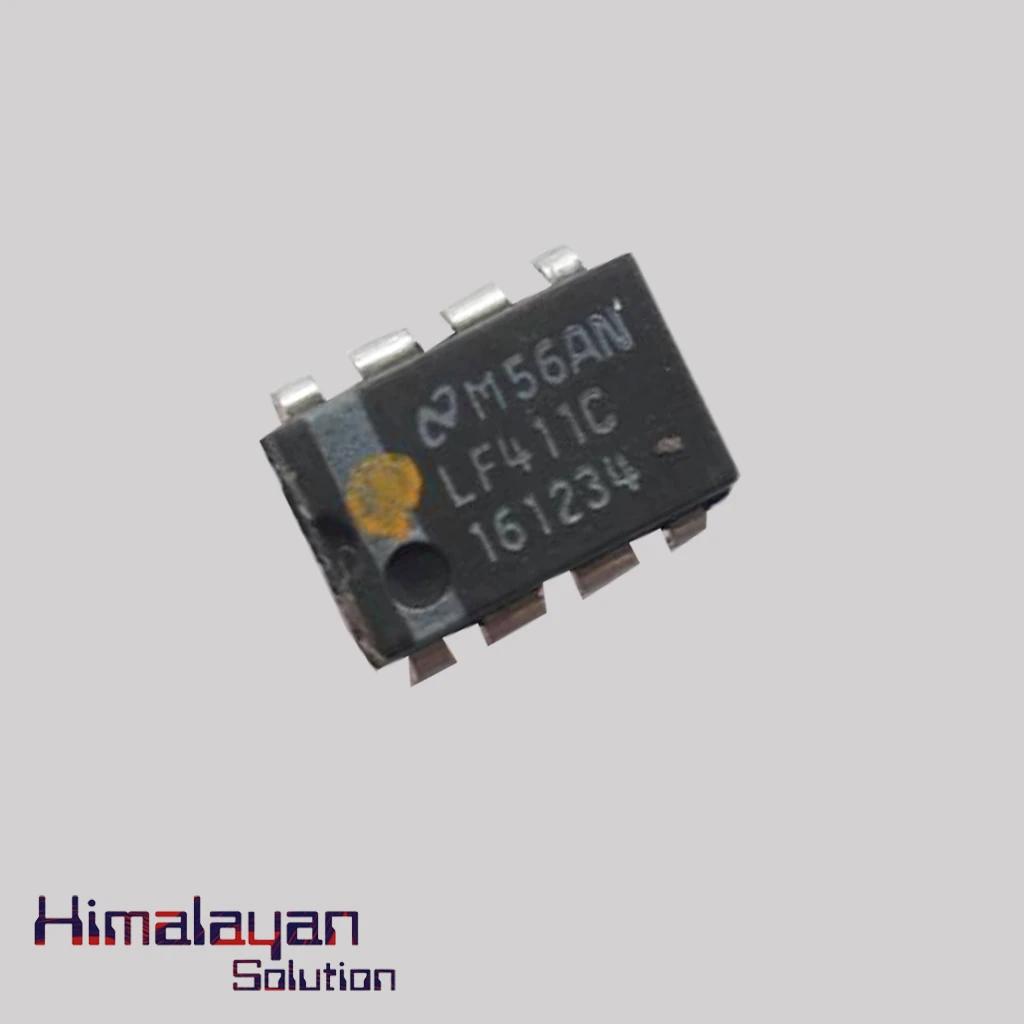

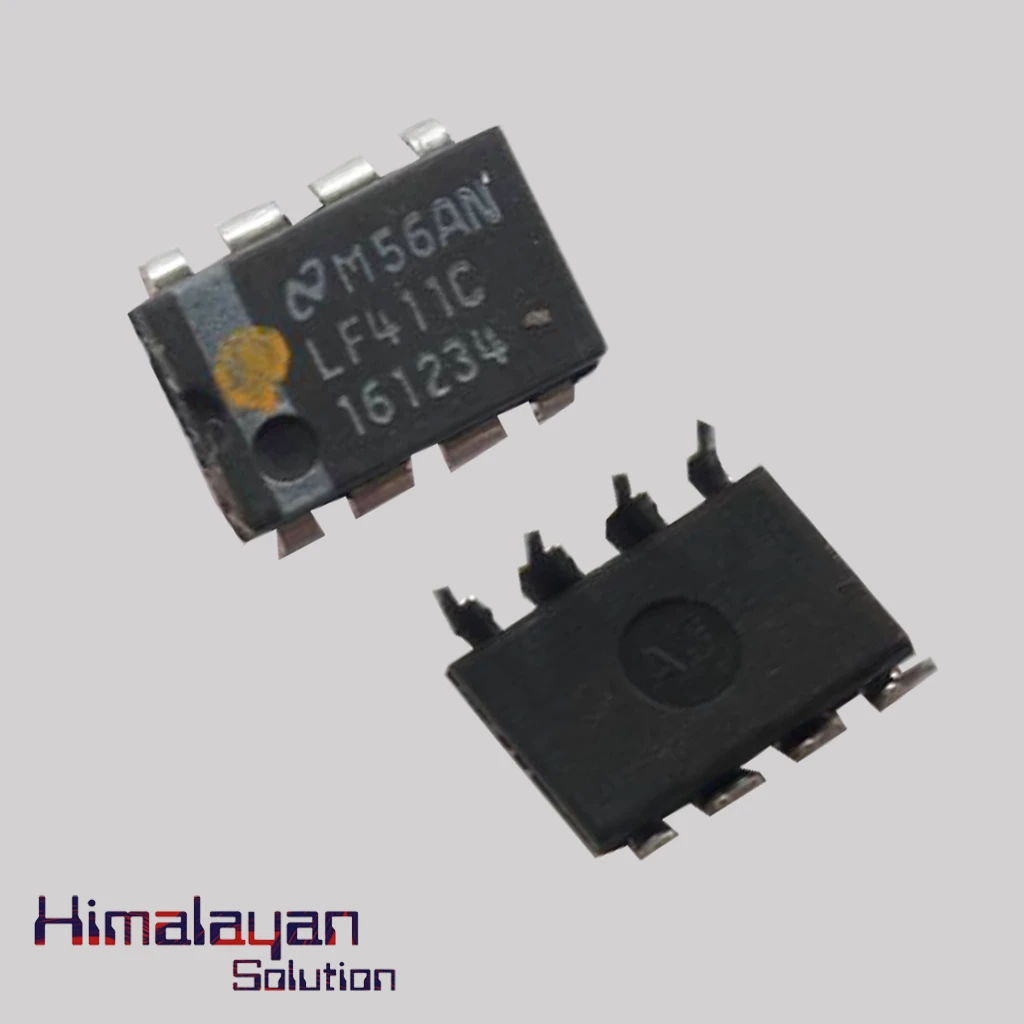

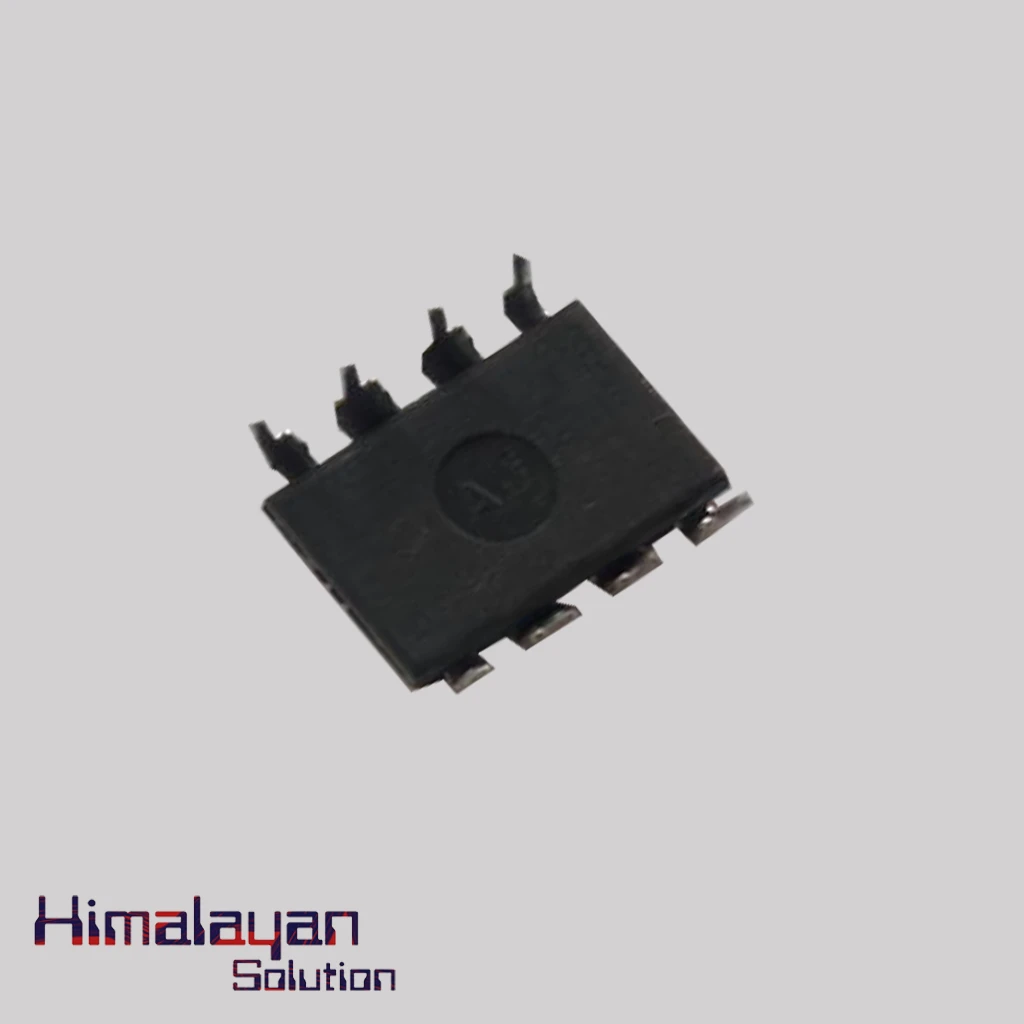

LF411C IC
The LF411 IC is a low cost, high speed, JFET-input operational amplifier with very low input offset voltage and a maximum input offset voltage drift. It requires low supply current. This amplifier can be used in applications such as :- high speed integrators, fast D/A converters, sample and hold circuits and many more.
Availability: Out Of Stock
| Name | LF411 IC |
| Number Of Channels | 1 |
| Total Supply Voltage (Min) | 7 |
| Total Supply Voltage (Max) | 36 |
| GBW (Typ) (MHz) | 3 |
| Slew Rate (Typ) (V/us) | 15 |
| Rail-To-Rail | No |
| Vos (Offset Voltage @ 25C) (Max) (mV) | 2 |
| Iq Per Channel (Typ) (mA) | 2 |
| Vn at 1kHz (Typ) (nV/rtHz) | 18 |
| Operating Temperature Range | 0 to 70 Degree Celsius |
| Package Group | PDIP SOIC |
| Offset Drift (Typ) (uV/C) | 10 |
| Input Bias Current (Max) (pA) | 200 |
| CMRR (Typ) (dB) | 100 |
| Output Current (Typ) (mA) | 25 |
| Architecture | FET |
