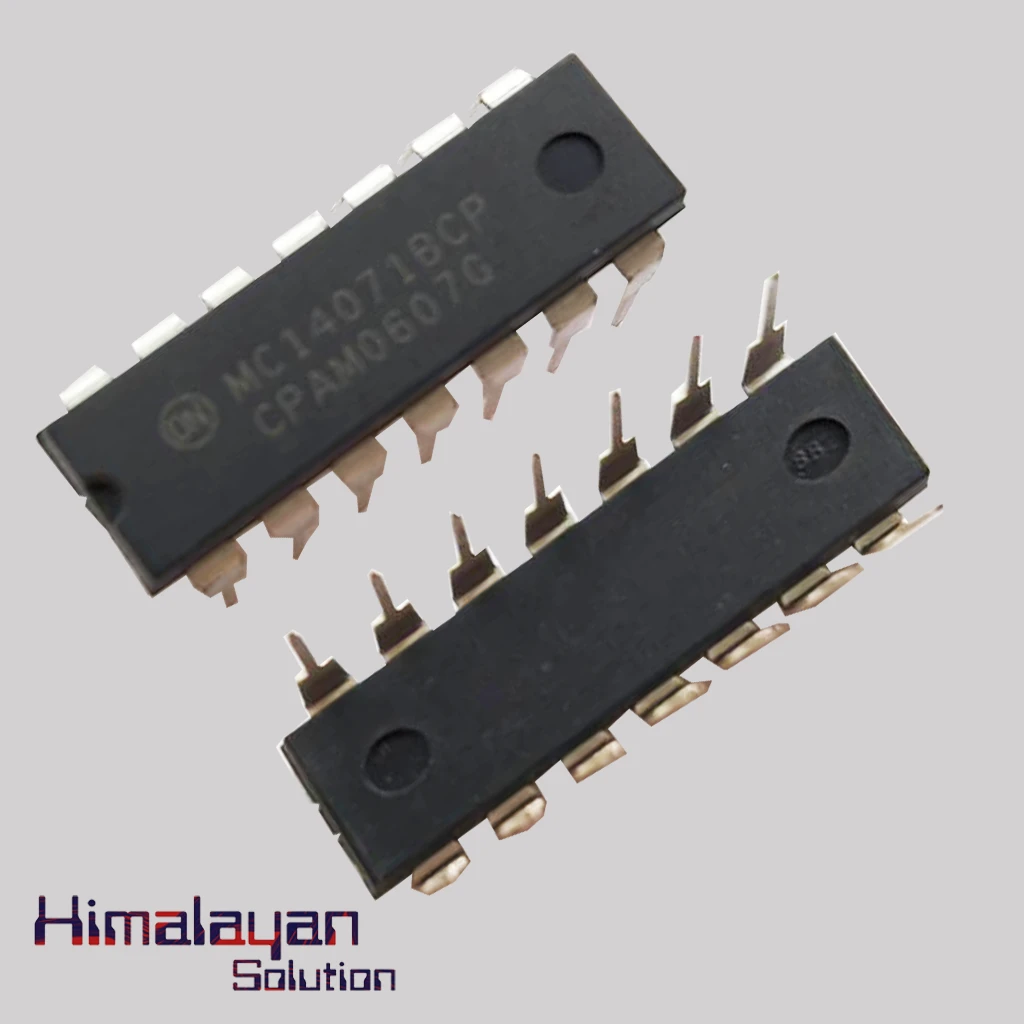

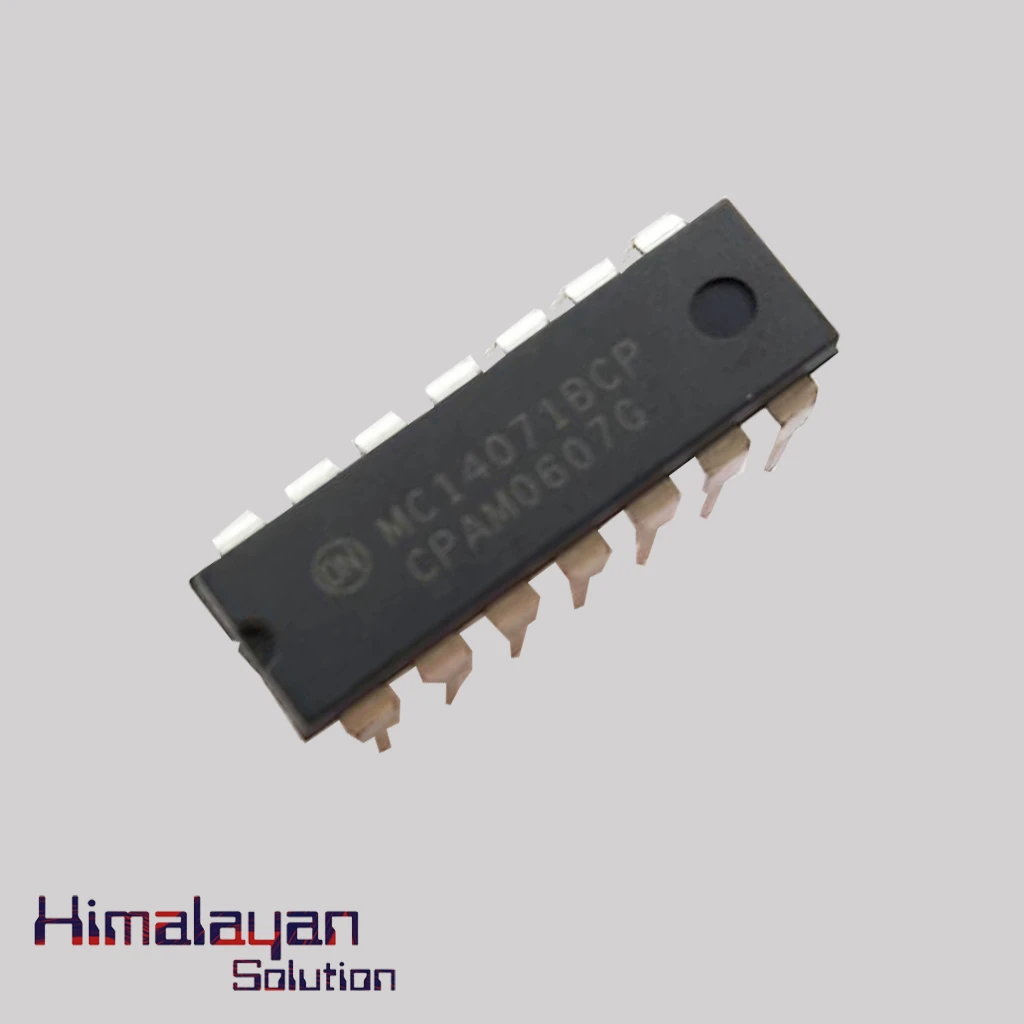

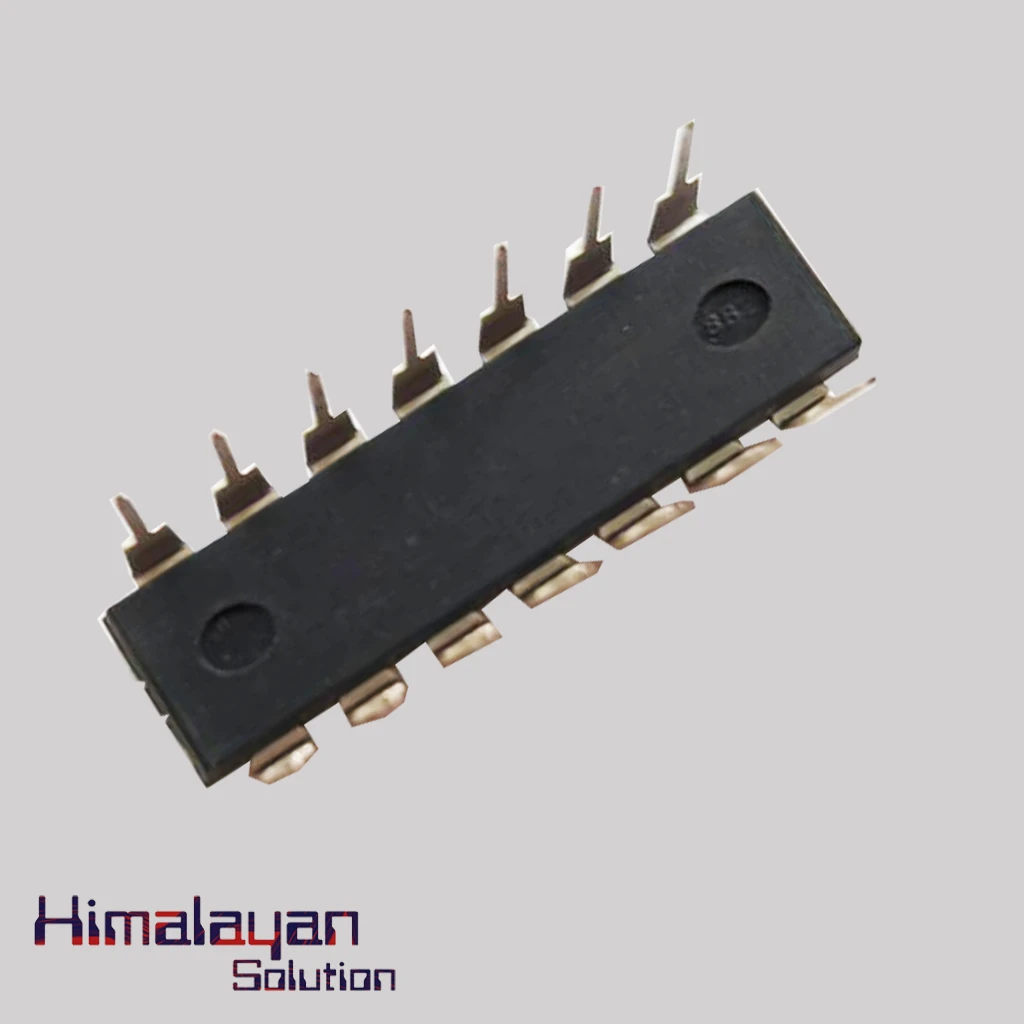

MC14071BCP IC
The MC14071BCP IC is a integrated circuit that belongs to B-suffix series of CMOS gates. Its logic gates are constructed with P and N channel enhancement devices in a single monolithic structure CMOS. It is useful where low power dissipation or high noise immunity is desired.
Availability: In Stock
| Name | MC14071BCP IC |
| Logic Function | OR |
| Number Of Gates | 4 Gate |
| Number Of Input Lines | 2 Input |
| Number Of Output Lines | 1 Output |
| High Level Output Current | - 4.2 mA |
| Low Level Output Current | 4.2 mA |
| Propagation Delay Time | 300 ns |
| Supply Voltage Range | 3V to 18V |
| Operating Temperature Range | - 55 to + 125 degree celsius |
| Mounting Style | Through Hole |
| Height | 3.68 mm |
| Length | 19.56 mm |
| Width | 6.6 mm |
| Quiescent Current | 1.5 nA |
