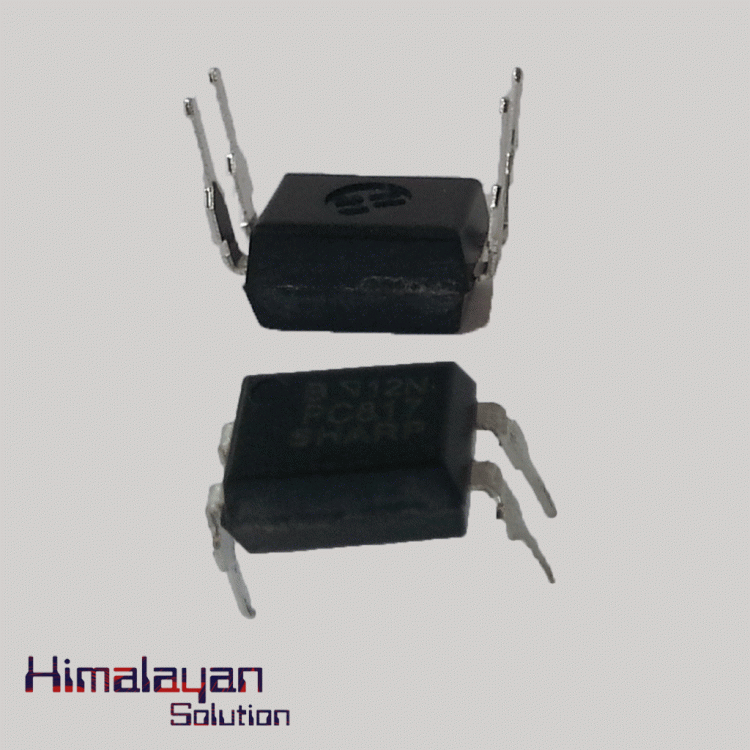

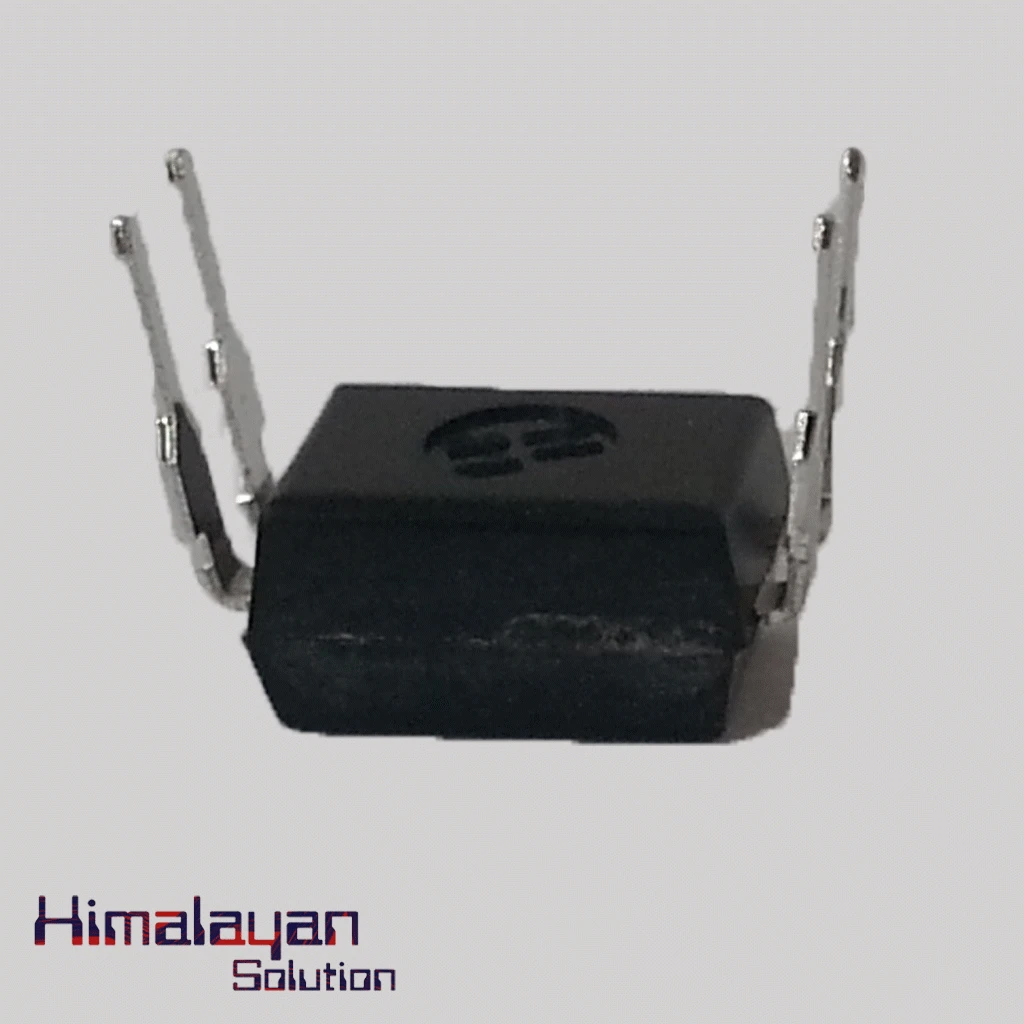

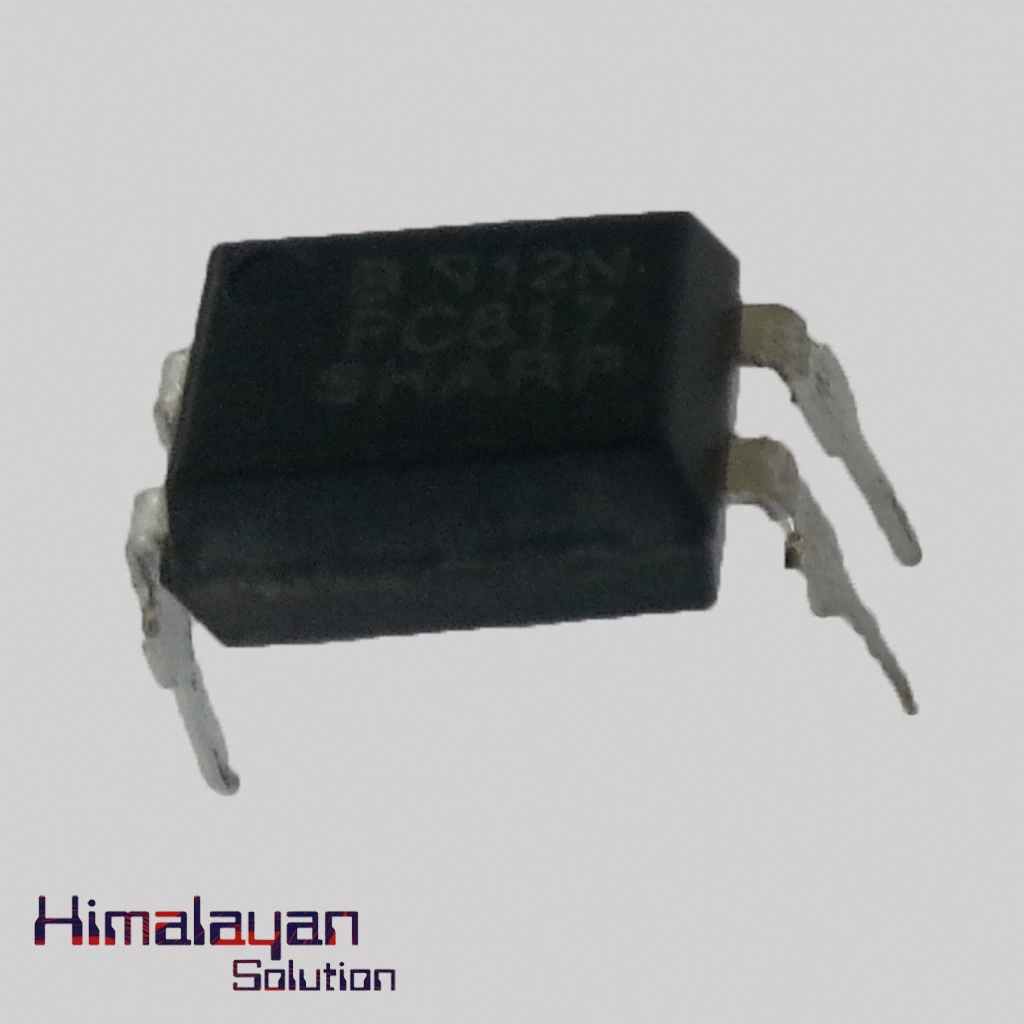

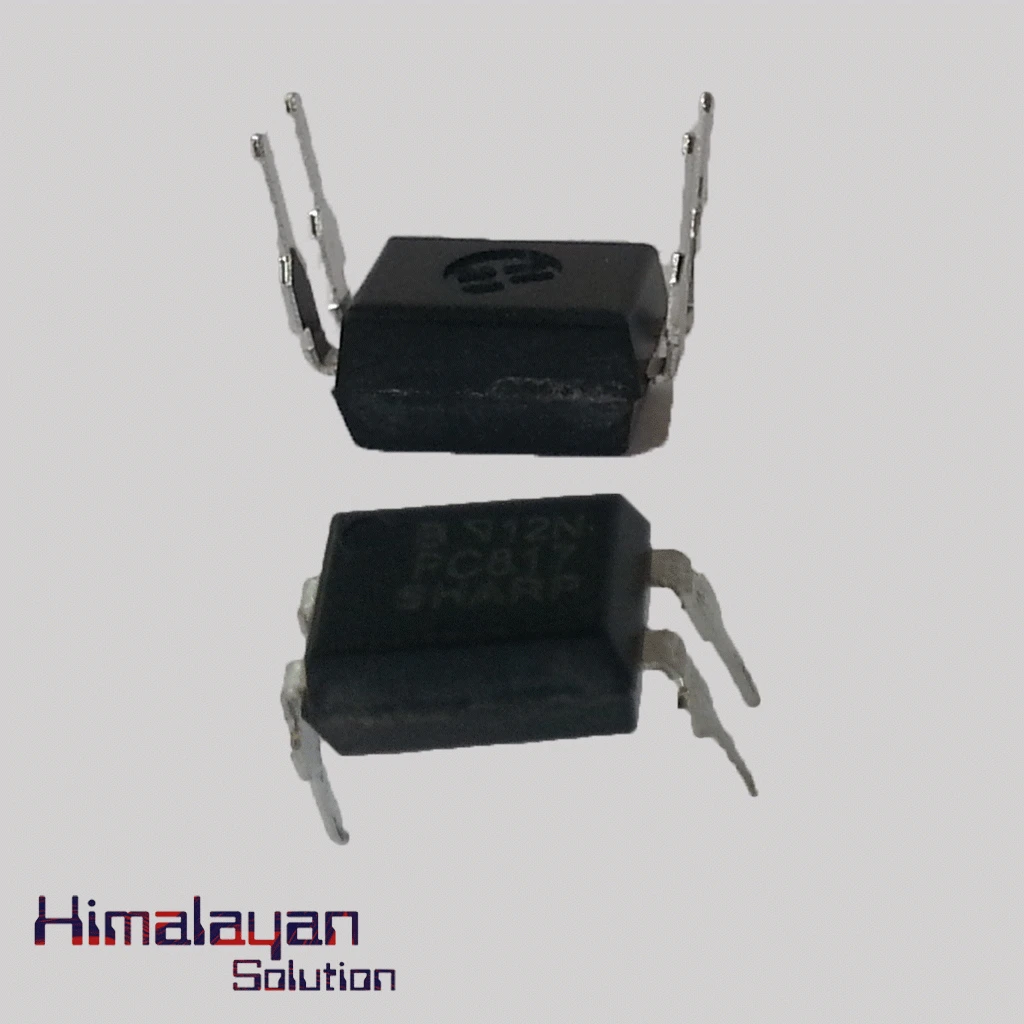

PC817 IC
The PC817 IC ks build with an IRED which is optically paired to a phototransistor. It consists of a 4-pin DIP package and there is high isolation of voltage amongst the input and the output. The collector-emitter voltage is high and it is RoHS directive compliant.
Availability: In Stock
| Name | PC817 IC |
| Forward Current | 50 mA |
| Peak Forward Current | 1 A |
| Reverse Voltage | 6V |
| Power Dissipation | 70 mW |
| Collector-emitter Voltage | 80 V |
| Emitter-collector Voltage | 6 V |
| Collector Current | 50 mA |
| Collector Power Dissipation | 150 mW |
| Total Power Dissipation | 200 mW |
| Operating Temperature | -30° to 100° C |
| Storage Temperature | -55° to 125° C |
| Isolation Voltage | 5 kV |
| Soldering Temperature | 270° C |
