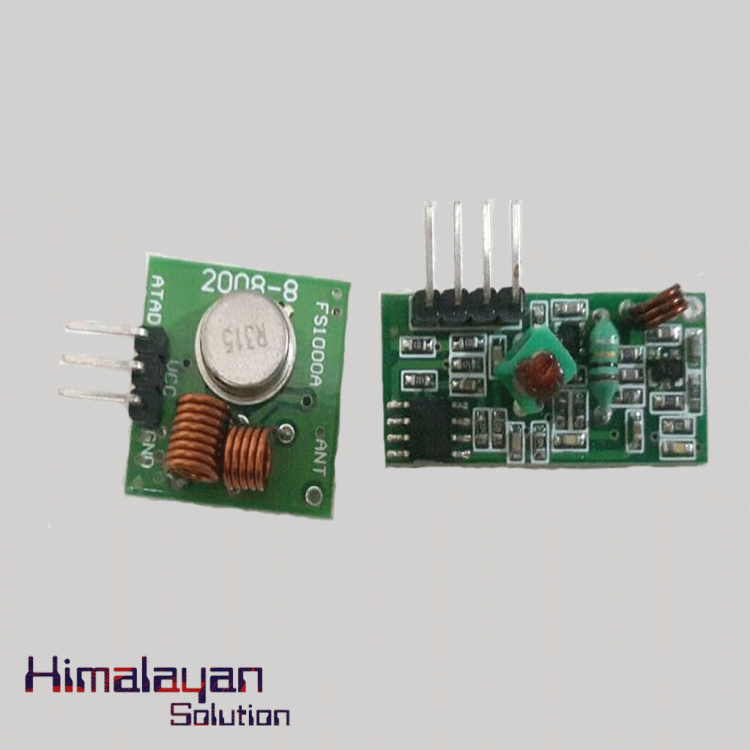

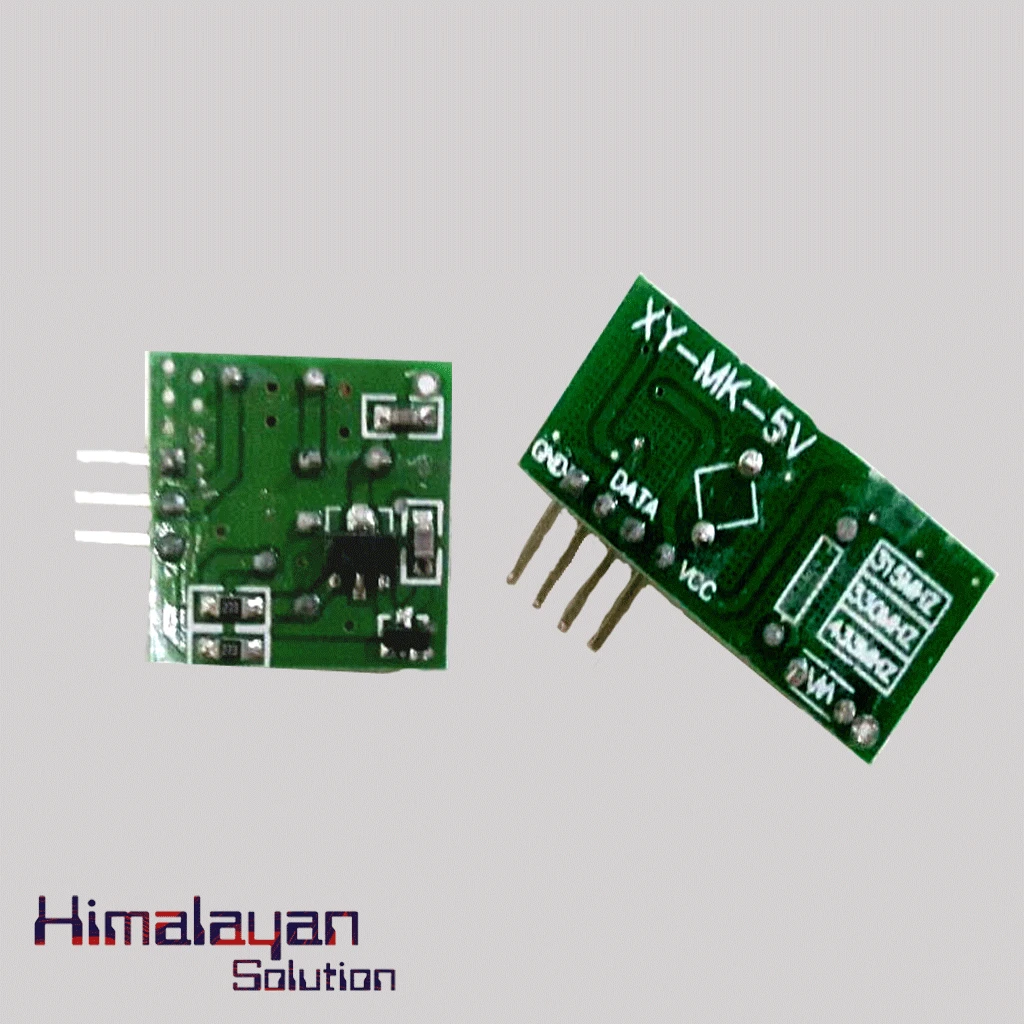

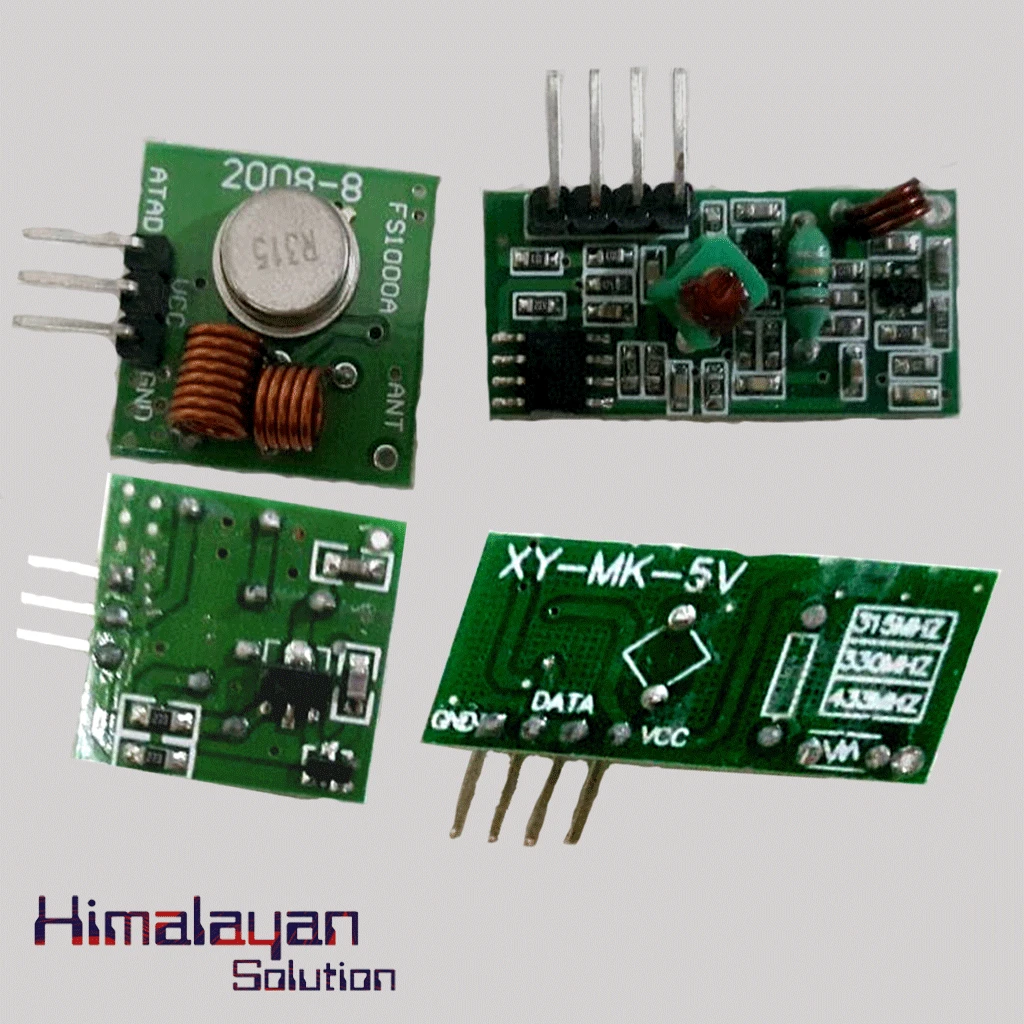

RF Module 315 mhz

Rf Module 315 mhz consist of transmitter and receiver module used  for transmitting  data via RF. Its frequency range is 315mhxz. They easily fit into a breadboard and work well with microcontrollers to create a very simple wireless data link. They are mostly used in Wireless calling system, burglar alarm, wireless data transmission, automated data acquisition system , DIY projects and many more. It has wider range of working voltage with stable performance.

In Category:
  • Wireless and IOT
  • RF
  • RF Connecter
  • Recivers
  • transister
  • Availability: In Stock

    Product Model MX-05V ( Receiver module)
    Working Voltage DC5V
    Working Current 4mA
    Receiving Frequency 315Mhz
    Receiver Sensitivity 105DB
     Frequency 315Mhz
    Size 30 * 14 * 7mm
     Product Model MX-FS-03V (Transmitter Module)
    Operating Voltage 3.5-12V
    Transfer Rate 4KB / S
    Transmitting Power 10mW
    Transmitting Frequency 315Mhz
    Launch Distance 20-200 meters
    Output Power 16dBm (40mW)
    Working Current 20mA ~ 28mA
    Size 19 x 19 x 8mm
