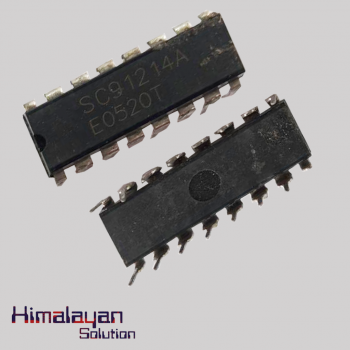

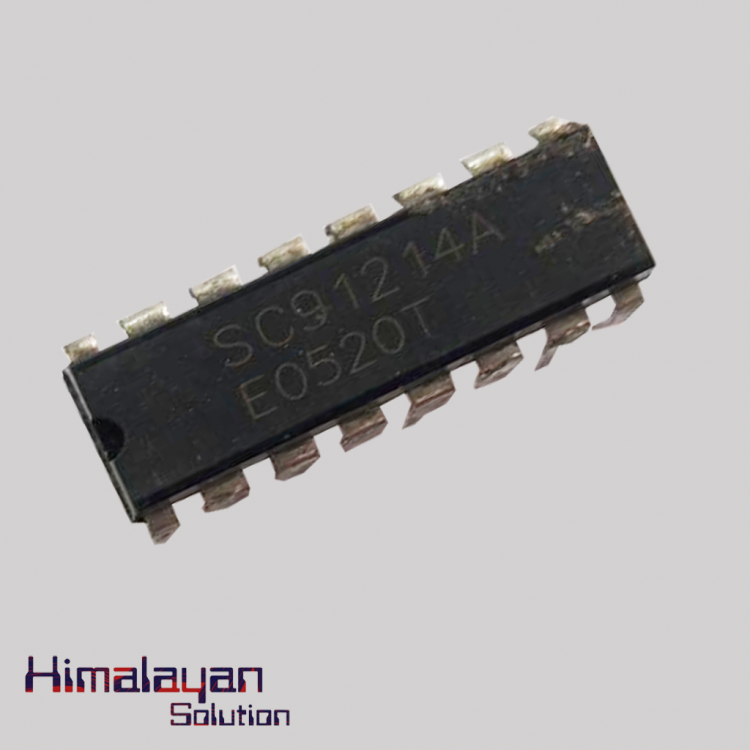

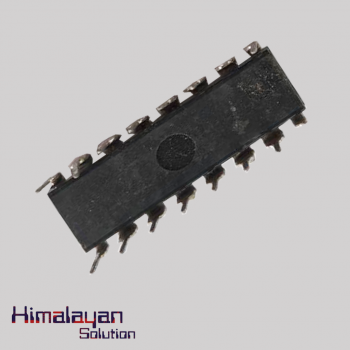

SC 91214A IC
The SC 91214A IC is a single chip with silicon gate body structure and CMOS integrated circuit. It consists of oscillator for a 3.58MHZ crystal or ceramic resonator. It performs the function related to pulse dialing (DP) or dual tone multi-frequency (DTMF) dialing. A standard 4 X4 matrix keyboard
can be used to support either DP or DTMF modes.
Availability: Out Of Stock
| Name | SC91214A IC |
| Crystal Frequency (MHz) | 3.58 |
| JESD-30 Code | R-PDIP-T16 |
| Number Of Terminals | 16 |
| Operating Temperature | -25 to 70 Degree Celsius |
| Package Body Material | Plastic/Epoxy |
| Supply Current Max | 2.0 mA |
| Supply Voltage Nom | 3.5V |
| Surface Mount | No |
| Technology | CMOS |
| Terminal Form | Through Hole |
| Terminal Pitch | 2.54mm |
| Terminal Position | Dual |
| Name | SC91214A IC |
| Crystal Frequency (MHz) | 3.58 |
| JESD-30 Code | R-PDIP-T16 |
| Number Of Terminals | 16 |
| Operating Temperature | -25 to 70 Degree Celsius |
| Package Body Material | Plastic/Epoxy |
| Supply Current Max | 2.0 mA |
| Supply Voltage Nom | 3.5V |
| Surface Mount | No |
| Technology | CMOS |
| Terminal Form | Through Hole |
| Terminal Pitch | 2.54mm |
| Terminal Position | Dual |
