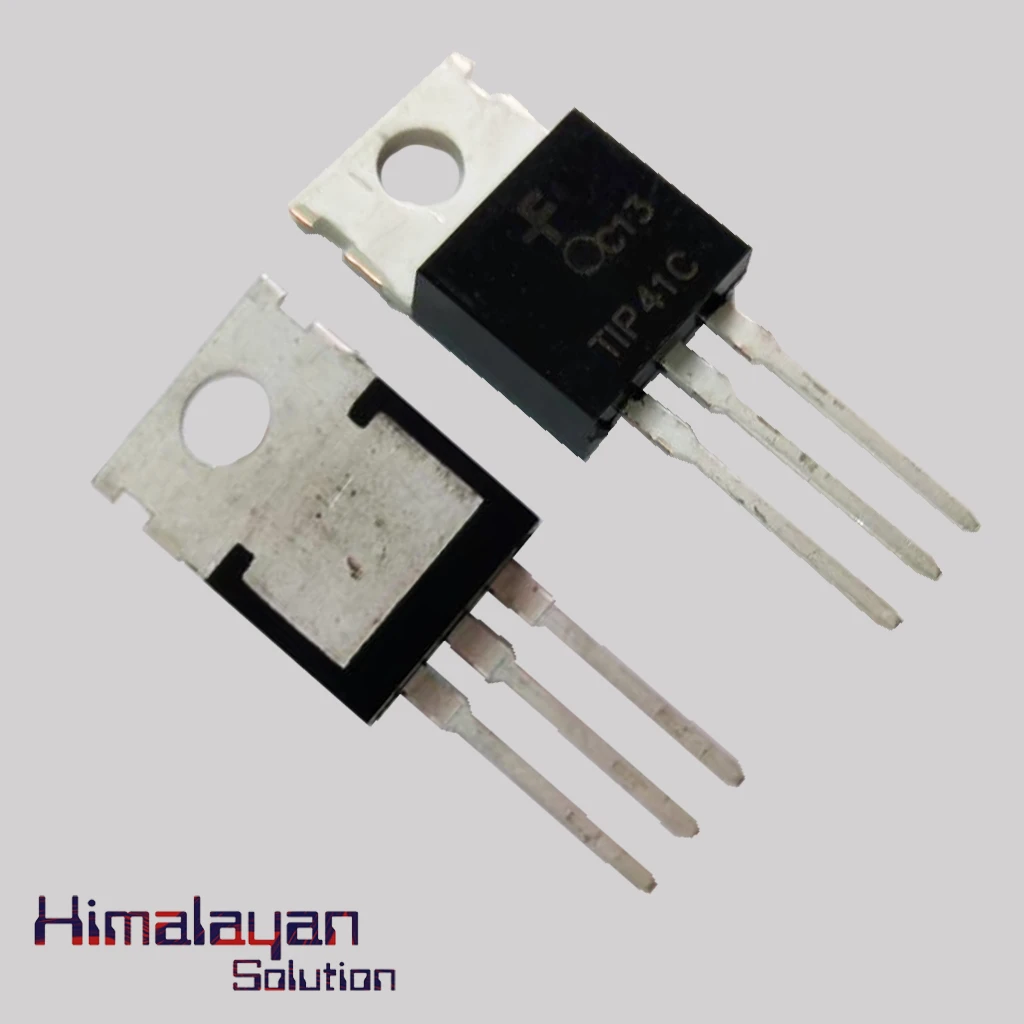

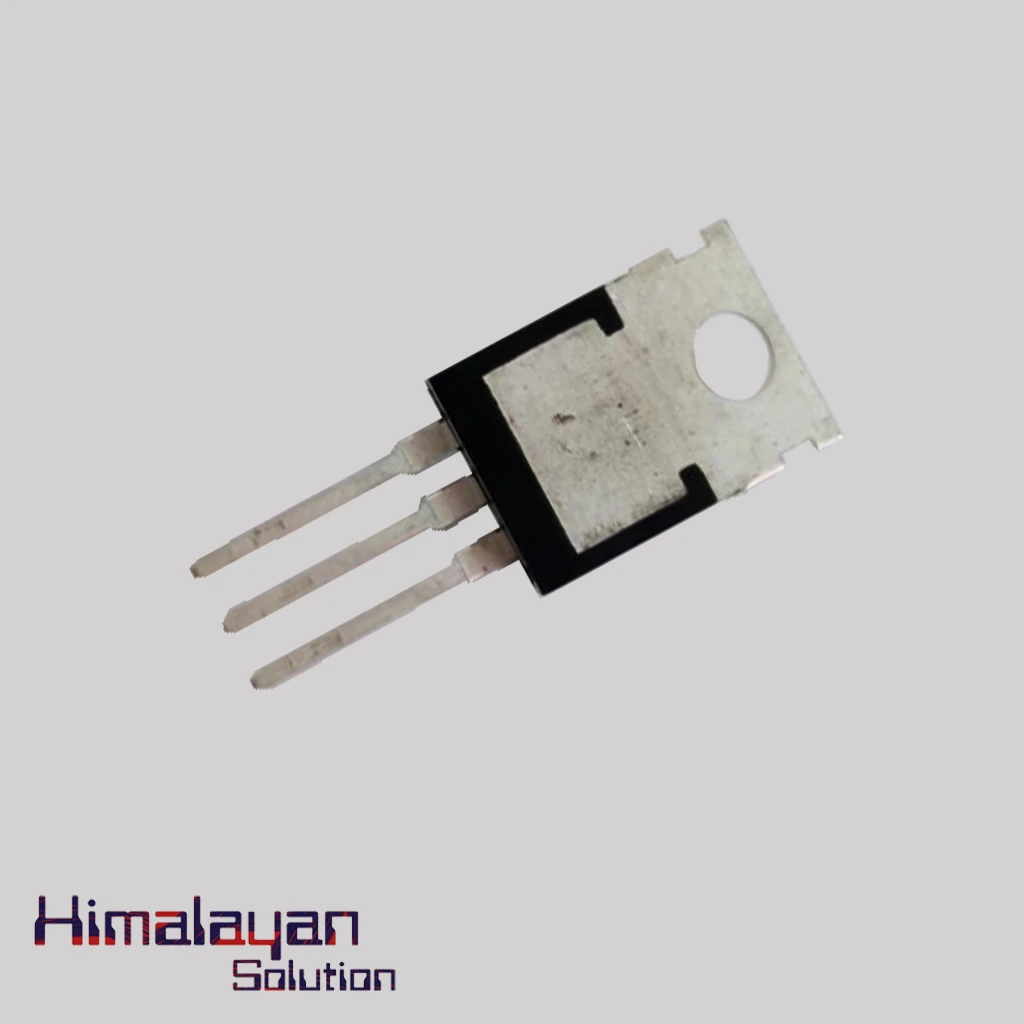

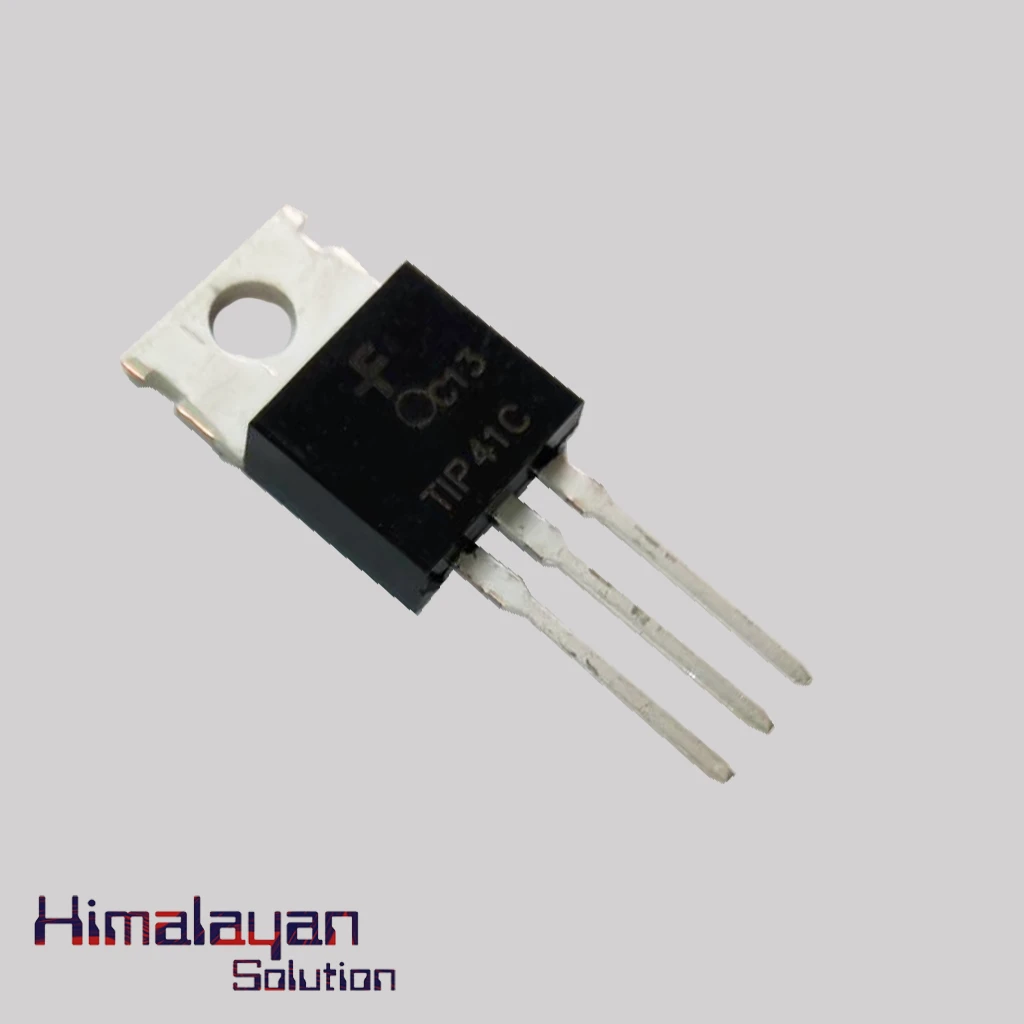

Tip 41 IC
The Tip 41c is a complementary power transistor that is based on island technology NPN power transistor in TO-220 plastic packaging. It is applicable for various sectors like :- audio amplifier, power linear and switching and general purpose circuits
Availability: In Stock
| Name | Tip 41c Ic |
| Material Of Transistor | Silicon |
| Polarity | NPN |
| Maximum Collector Power Dissipation (Pc) | 65 W |
| Maximum Collector Base Voltage | 140 V |
| Maximum Collector Emitter Voltage | 100 V |
| Maximum Emitter Base Voltage | 5 V |
| Max. Operating Junction Temperature | 150 °C |
| Transition Frequency | 3 MHz |
| Forward Current Transfer Ratio (hFE), MIN | 20 |
| Maximum Collector Current |Ic max| | 6A |
