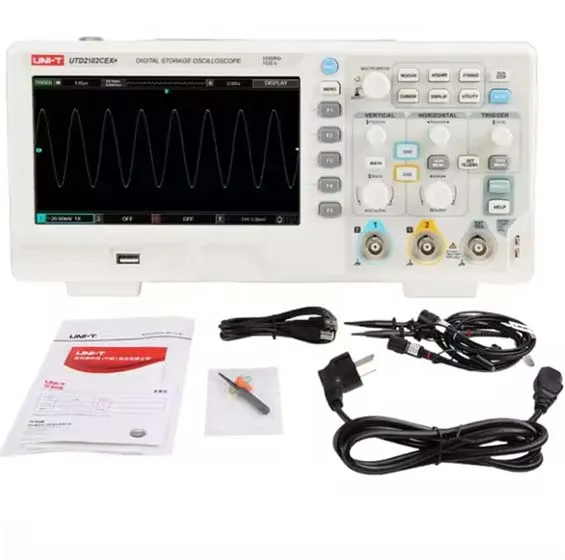

UNI-T UTD2102CEX+ 100MHZ Digital Storage Oscilloscope 1GS/s 2Channels
The UTD2102CEX+ is a versatile and economical digital storage oscilloscope designed to meet the essential needs of electronics testing and signal analysis. With a 100 MHz bandwidth and dual-channel configuration, it offers a real-time sampling rate of 1 GS/s and a memory depth of 64 kpts, enabling accurate and detailed signal capture.
Availability: In Stock
| Model: | UTD2102CEX+ |
| Channels: | 2 |
| Bandwidth: | 100 MHz |
| Sampling Rate: | 1 GS/s (giga-samples per second) |

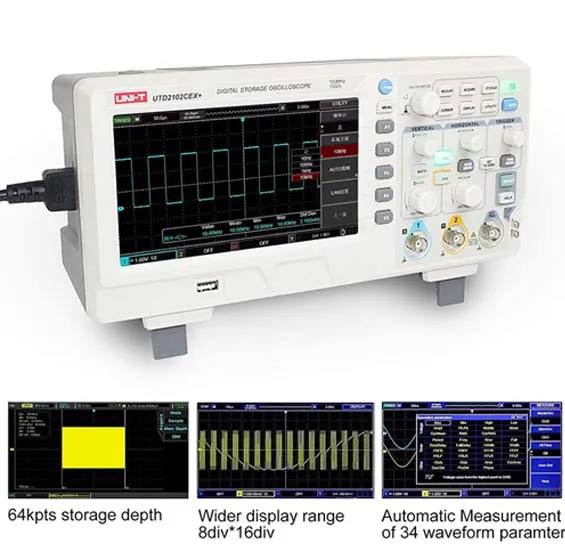

| Memory Depth: | 64 kpts (kilo-points) |
| Rise Time: | <3.5 ns |
| Waveform Capture Rate: | >5,000 wfms/s (waveforms per second) |
| Vertical Scale (V/div): | 1 mV/div to 20 V/div |
| Time Base Scale (s/div): | 2 ns/div to 50 s/div |
| Timing Accuracy: | ≤±(50 + 2 × service life) ppm |
| Time Base Modes: | Y-T, X-Y, Roll |
| Storage Methods: | Setup, waveform, bitmap |
| Trigger Types: | Edge, Pulse Width, Alternate, Slope, Video |
| Mathematical Operations: | Addition (+), Subtraction (−), Multiplication (×), Division (÷), FFT (Fast Fourier Transform) |
| Auto Measurements: | 34 parameters including:Pk-Pk, Amplitude, Max, Min, Low, Middle, High, Mean, RMS, Overshoot, Preshoot, Period, Frequency, Rise Time, Fall Time,+Width, -Width, +Duty, -Duty, Delay, Phase,FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF |
| Displayed Measurements: | Up to 5 measurements can be displayed simultaneously |
| Frequency Counter: | 6 bits |
| Display: | 7-inch TFT LCD, 800×480 resolution |
| Interface: | USB OTG, Pass/Fail port |
| System Software Upgrade: | Via USB drive |
| Power Supply: | 100-240 VAC, 45-440 Hz |
| Product Color: | White and grey |
| Net Weight: | 3.5 kg |

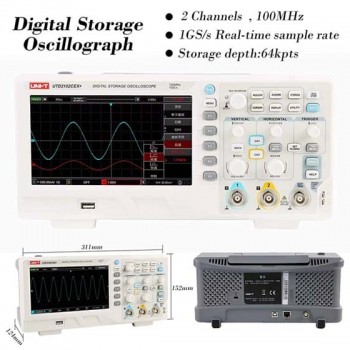

| Dimensions: | 336 mm × 164 mm × 108 mm |
The UTD2102CEX+ is a versatile and economical digital storage oscilloscope designed to meet the essential needs of electronics testing and signal analysis. With a 100 MHz bandwidth and dual-channel configuration, it offers a real-time sampling rate of 1 GS/s and a memory depth of 64 kpts, enabling accurate and detailed signal capture.

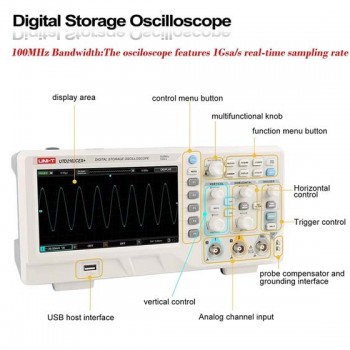

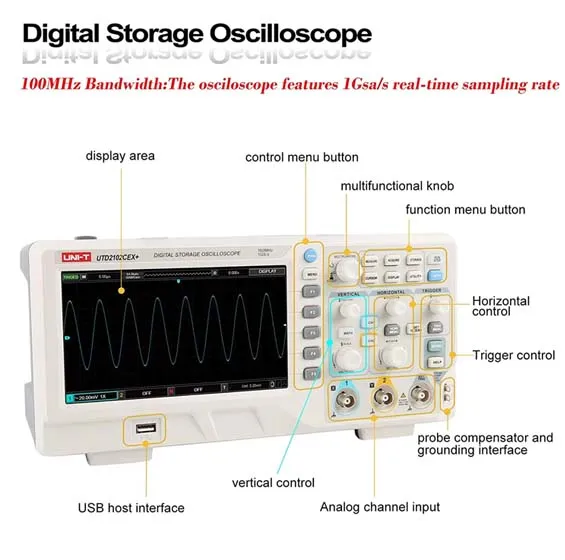

Its user-friendly interface features a 7-inch TFT LCD screen for clear waveform display and analysis. The oscilloscope provides a broad vertical range from 1 mV/div to 20 V/div and a time base range from 2 ns/div to 50 s/div, accommodating a wide variety of signal types and testing scenarios. It also includes multiple trigger types (Edge, Pulse Width, Slope, Video) and 34 automatic measurements, such as peak-to-peak, frequency, RMS, and phase, supporting comprehensive analysis.

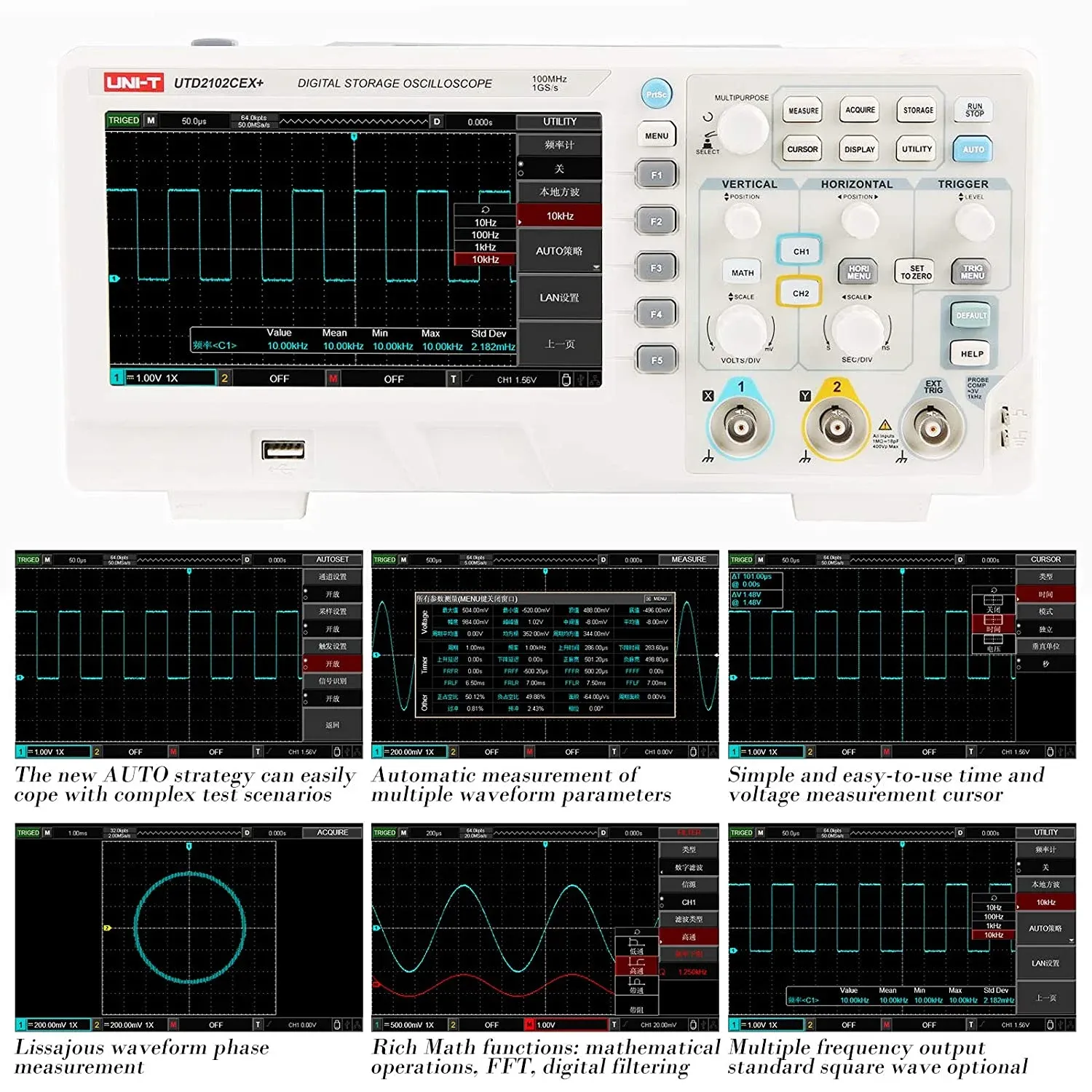

Additionally, the UTD2102CEX+ supports advanced mathematical operations (addition, subtraction, multiplication, division, FFT) and can display up to five measurements simultaneously. It features USB connectivity for data storage, remote control, and software upgrades, enhancing its flexibility and usability.
Compact and lightweight, the UTD2102CEX+ is ideal for educational settings, electronics labs, and engineers needing a reliable, cost-effective solution for basic measurement and diagnostic tasks.
