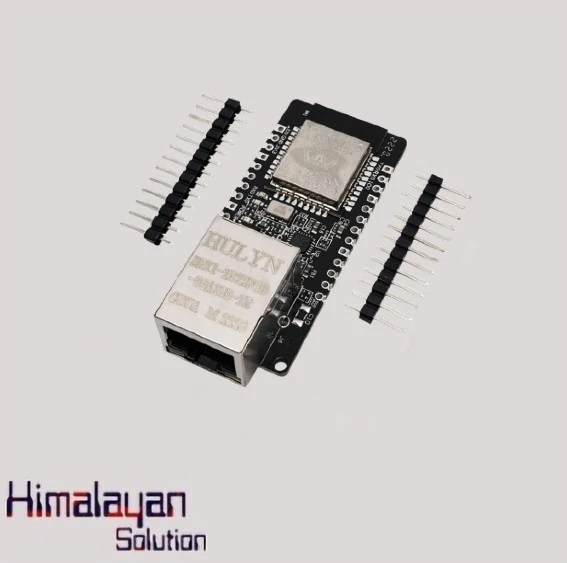

ESP32 ethernet wifi module (Wt32-ETH01 Wifi+Bluetooth) WT32-ETH01
WT32-ETH01 is an embedded serial to Ethernet module based on the ESP32 series WT32-S1 MCU. The module integrates an optimized TCP/IP protocol stack, which is convenient for users to easily complete the networking functions of embedded devices while reducing development time cost. In addition, the module is compatible with half-pad and through-hole connectors. The board width is a universal width and therefore, it can be directly soldered to boards, connectors, or even breadboards, which is convenient for users to use in different scenarios.
Availability: In Stock
Main features of WT32-ETH01 gateway:
1. Adopt dual-core Xtensa®32-bit LX6 MCU. Integrated SPI flash 3.32Mbit\ SRAM 520KB
2. Support TCP Server, TCP Client, UDP Server, UDP Client working mode.
3. Support the four data ports of serial port, wif. Ethernet and Bluetooth to be combined in pairs, and the data is transparently transmitted.
4. Support to connect to the network through wired network or wifi to upgrade the firmware.
5. Support wifi to connect to the Internet or LAN through a router, establish a TCP/UDP connection, and access the user's designated server.
6. Support wired network access.
7. Support user secondary development.
8. Industrial grade operating temperature range: -40-+85.
9. Serial port baud rate: 80-5000000.
10. Network protocol: IPv4, TCP/UDP.
11. Software encryption: AES/RSA/ECC/SHA
WT32-ETH01 Embedded Serial Port Networking Ethernet Bluetooth WIFI MCU Module ESP32 Wireless Combo Gateway Module Board
Note:it is not included pins
Main features of ETH 01 gateway:
Using dual-core Xtensa 832-bit LX6 microcontroller. Integrated SPI flash memory 32 MbitSRAM 520 KB
Support TCP server, TCP client, UDP server, UDP client working mode
Supports four data ports of serial port, wifl, Ethernet and Bluetooth to be combined in pairs, and data is transparently transmitted
Support to connect to the network via wired network or wifi to upgrade the firmware
Support wifi to connect to the Internet or LAN through the router, establish tcp/udp connection, and access the user's designated service
Device.
Support wired network access
Support user secondary development
Industrial grade working temperature range: -40~+85
Serial port baud rate: 80-5000000
Network protocol: IPv 4, tcp/udp
Software encryption: AES/RSA/ECC/SHA
